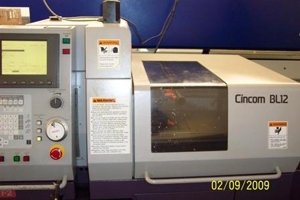

Citizen BL-12II, Fanuc 21iT, 1/2", 1999, 12,000 RPM, 5OD/4ID Tools, Genius 112

GENERAL SPECIFICATION AS PER BROCHURE

Max. Turning Diameter: 12mm (1/2")
Max. Machining Length: 2.5" y
Drilling Diameter: 6mm
Max. Tapping Diameter: M6
Spindle Through Hole Diameter: 13.2mm
Main Spindle Speed: 100 - 12,000 rpm
Main Spindle Speed Change: S5
Main Spindle Collet Chuck: FC 9120m- (k)
Drill Chuck: AR11, ER11
# of Cutting Tools:
OD Tools:
Tool Post #1: 2 positions
Tool Post #2: 3 positions
ID Tools: 4 positions
Tool Sizes:
Tool Bit: 10x10x20-120mm
Sleeve: 20mm/19.05mm
Rapid Traverse:
Z1 Axis: 18m/min
X1 Axis: 18m/min
Y1 Axis: 15m/min
X2 Axis: 15m/min
Least Input Increments:
Z1/X1/Y1/X2 Axis: 0.001mm
Dimensions (approx.): 62" x 36" x 60"
Weight (approx.): 2,200 lbs

Equipped With:

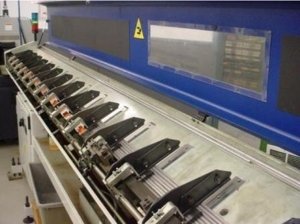

Iemca Genius 112 Magazine Type Bar Loader, New 2000
