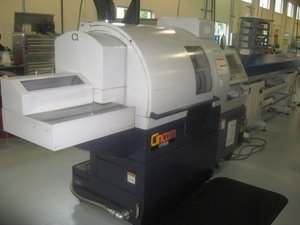

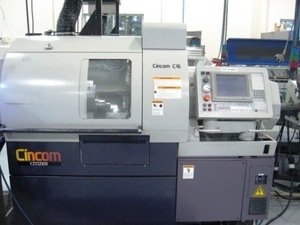

5/8" Citizen C16 Type VII (1M7), '01, 5-Axis, 4Rot/6OD/6ID-BW, Iemca Genius, HPC
Specifications:
General Specifications for a C16 VII as per brochure
Control: Cincom System M6
Axes: 7
X1,Y1,Z1,X2,Z3
Max. Machining Diameter: 5/8"
Max. Machining Length: 7.87" per chucking
Max. Chuck Diameter of the back spindle: 5/8"
Max. Workpiece Length for the front side
collection from the back spindle: 3.5"
Main Spindle Index: 1 degree Std (full C opt)
Sub Spindle Index: 1 degree Std (full C opt)

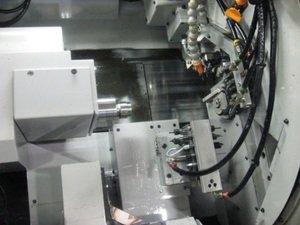

Tooling Size:
Tool (Gang Tool Post): 3/8" x 3/8"
Sleeve: 3/4"
# of Tools: 6 Turning
4 Rotary
6 Front Drilling
6 Back Drilling
Main Spindle Speed: 200 - 10,000 rpm
Rotary Tool Spindle Speed: 200 - 8,000 rpm
Back Spindle Speed: 200 - 10,000 rpm
Main Motor: 2HP/3HP
Tool Spindle Motor: 1HP
Back Spindle Motor: .5HP/1HP
Coolant Motor: .3HP
Weight (approx.): 3,750 lbs
Equipped With (to be confirmed by Buyer):

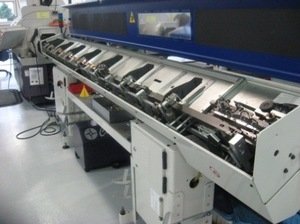

Iemca Genius 112 Magazine Bar Loader

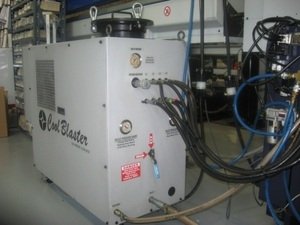

8-Line Cool Blaster High Pressure Coolant system
Mist Buster
Integrated NSK Air Spindles
User Macro
Extended parts program (640mm)
C Axis Main and Sub Spindles
Milling Interpolation
2 machines available. Only one has a long parts attachment.
