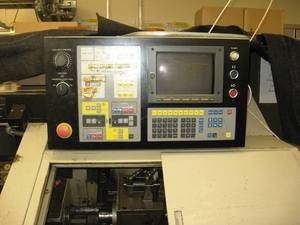

Control: Mitsubishi Meldas-320LC

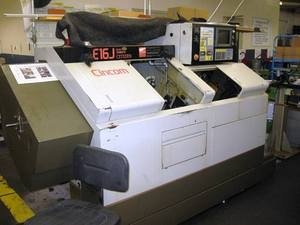

Cincom System IIB,
Simultaneous 5-axis
- Controlled Axes: X1, X2, Z1, Z3, C1
- Synchronous turning (AKA pinch turning)
Maximum machining diameter: 5/8"
Maximum machining length: 6.3"
Maximum drilling diameter: .315"
Maximum threading diameter (tap & die): .236"
Spindle through hole diameter: .79"
Spindle speed: 220 - 10000 rpm
Rotary tools:
maximum drilling diameter: .157"
maximum threading diameter: M3
spindle speed: 320 - 6300 rpm
Back-work:
Maximum chucking diameter of back-work spindle: 5/8"
maximum back-work length: 5.51"
maximum drilling diameter: .236"
maximum threading diameter: .157"
back-work spindle speed: 200 - 5000 rpm

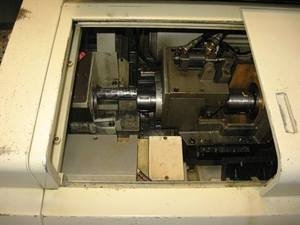

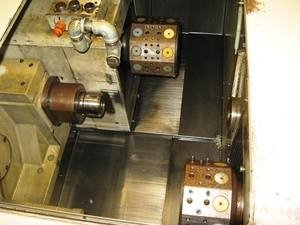

No. of tools installable: 20 (10 per turret)
No. of rotary tool positions: 20
Tool holders: 10-10mm
Tool size: 1/2 x 1/2 x 2.36"
Rapid traverse rate: x1,x2/z1,z3/c axes: 472"/630"/100 rpm
Main spindle motor drive: 5 hp
Rotary tool spindle motor drive: .54 hp
Back-work spindle motor drive: 1 hp
Power supply: 12 kva
Floor space: 56.3" x 77.95"
Weight (approx.): 6700 lb
Equipped with (must be verified by buyer):
LNS THB-16 Bar Feed (S/N 11946)

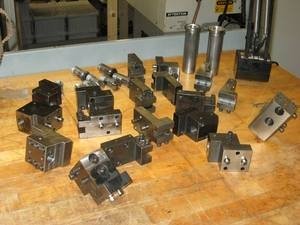

Turret Tool Holders:
(12) VTF-112L
( 4) VDF-101L
( 1) VDF-201L
( 1) VDF-401L
( 1) VDF-601L
Part Catcher
Long Part Tube
Misc Collets and Guide Bushings
Operation and Maintenance Manuals
Very Good Condition (used in a medical mfg facility)
