*** THIS MACHINE IS SET UP WITH A 16mm GUIDE BUSHING (TYPE 0201) ****

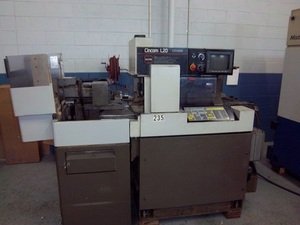

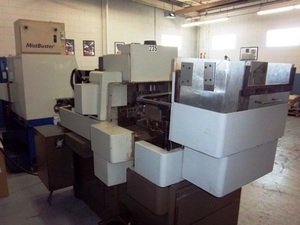

General Specification for Citizen L(3)20 Type VII
Control: Cincom IIC (Mitsubishi 330)
Max. Machining Diameter: 5/8"
Max. Machining Length per one chuck: 8.1"
Max. Drilling Diameter: up to .394"
Spindle Speed: 180 - 10000 rpm
Main Spindle Index: 15 deg (24 positions)
Back-work (sub spindle)
Max. Chucking Dia. of Pick-off Spindle: .812"
Pick-off Spindle Speed: 200 - 5000 rpm
Pick-off Spindle Motor: 2 HP
Min. Spindle Index: 15 deg (24 positions)
Rotary Tool:
Rotary Spindle Speed: 200 - 5000 rpm
Rotary Tool Motor: .5 HP
Number of Tools Mounted: 14
OD / Front ID / Back ID / Live Tools: 5 / 3 / 3 / 3
Power Consumption: 8 KVA
Approx. Weight: 3300 lbs.
Machine: 84" x 45" x 72" 3,300 lbs
Chip Catcher: 36" x 42" x 55" 1,000 lbs
Hydraulic Tank: 25" x 22" x 29" 150 lbs
Barfeed: 197" x 12" x 12" 1,500 lbs
Equipped with (must be verified by buyer):

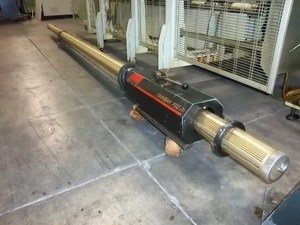

SMW FSQ-20 4-tube Hydrodynamic Bar Feed S/N 4-104
(2) GSC-110 Cross Mill-Drill Tools (additional New GSC-110 available,.POR)
More Pictures Available Upon Request
Option: Convert this machine to 20MM for approx. $3500; Please Inquire
Increase your productivity with PartMaker CAD/CAM Softerware... ASK ME HOW!
Also available: New and Used Bar Feed equipment, Hi-pressure coolant systems,
mist collection systems, tooling packages, as well as, assistance with rigging
& trucking.
