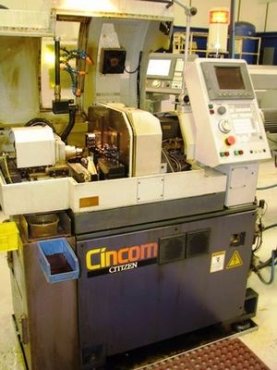

.16" CITIZEN R04VI (1F6) Fanuc 18iB, 2003, 6-Axis, 8OD/2 Live

General Specifications:

CNC Control: Fanuc 18iB
Max. Part Diameter: 5/32"
Part Length/Chucking: 2"
Main Spindle Speed: 200 - 20,000 RPM
Live Tool Spindle Speed: 8,000 RPM
Back Tool Spindle Speed: 100 - 10,000 RPM
Max. Tool Capacity:
Turning Tools on Tool Post 1: 3 Tools
Turning Tools on Tool Post 2: 2 Tools
ID Tool on Tool Post 2: 3 x 2 Tools (front and back)
Rotary Tool Post 1: 2 Tools
Motors Main Spindle: .75/1.1 kW
Back Spindle: .4 kW
Rotary Tool: .2 kW
Dimension (Approx): 4' x 2' x 4 1/2' (LxWxH)
Weight (approx): 1765 lbs

EQUIPPED WITH (to be confirmed by buyer):

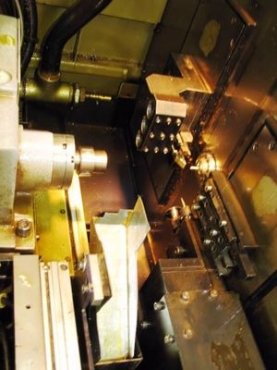

Tool Post 2: 3 Position Turning + 2 Live Tools (complete)
Endworking drill sleeves (complete)

********** Tryton Bar Loader Available - POR ************************

Approx 33,000 hours


Machine: 66" x 47" x 64" 1800 lbs

4' x 2' x 4 1/2'

1765 lbs
