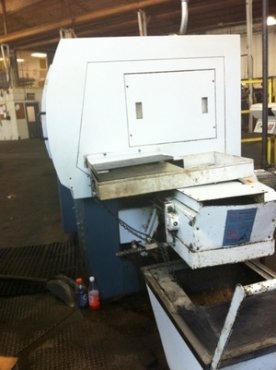

General Specifications per Manufacturer's Brochure:
CNC Control: Mitsubishi 500 series
Max. Turning Diameter: 1 3/8"*
*upgraded to 36mm Max. Diameter
Max. Turning Length: 10.55"
Max. Drilling Diameter: 1.02"
Max. Tapping Diameter: 5/8" (M6)
Number of OD Tools: 5 (max)
OD Tool Size: 16 x 16 x 120mm (5/8" x 5" approx)
Number of ID Tools: 3
ID Tool Size: 25mm (ER20)
Number of Back working Tools: 4

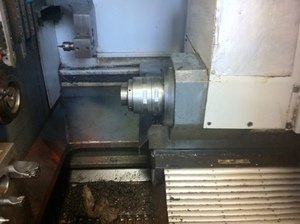

Main Spindle Bore Diameter: 1.5" (upgraded to 36mm)
Main Spindle Speeds: 200-8000 rpm
Main SPindle Indexing: 5 Degree
Sub Spindle Bore Diameter: 1.3" (upgraded to 36mm)
Sub Spindle Speeds: 200-8000 rpm
Sub Spindle Indexing: 5 Degree
Max. Length for front Ejection: 10.55"
Max. Back Drilling Diameter: .63"
Max. Back Tapping Diameter: M12
Rapid Traverse in all Axes: 709 ipm
Motors
Main Spindle: 7.4 HP (5.5 kW)
Sub Spindle: 3 HP (2.2 kW)*
*Upgraded to 5HP on sub
Machine Dimension (approx): 98"L x 50"W x 70" H
Weight (approx): 8800 lbs
Equipped With (to be confirmed by buyer):

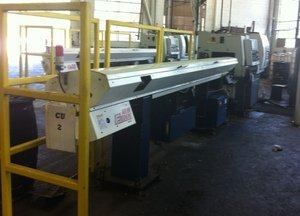

Fedek (MTA) Eagle 542 Magazine Bar Loader; 1-1/4" x 12' bar length cap.
Rough Material Guide Bushing (can handle non-ground stock)
Chip Conveyor
Long Part Tray
This machine was upgraded to handle 36mm diameter material
