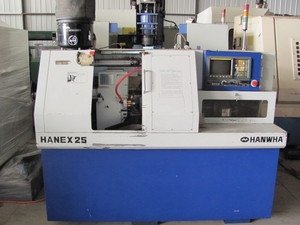

Hanwha Hanex 25D CNC Swiss Type Lathe, New 1998

MACHINING RANGE - MAIN SPINDLE
Maximum Machining Diameter: 8 -25 mm
Maximum Machining Length: 210 mm
Maximum Tapping Diameter: M10
Maximum Drilling Diameter: 12 mm
Spindle Speeds: 200 - 6.300 rpm

SUB-SPINDLE
Spindle Speeds: 200 - 4.000 rpm
Maximum Chucking Diameter: 25 mm
Maximum Drilling Diameter: 8 mm
Maximum Tapping Diameter: M6

TOOL SPINDLE (Live-Tools)
Spindle Speeds: 200 - 4.000 rpm
Maximum Drilling Diameter: 7 mm
Maximum Tapping Diameter: M5

TOOLING SYSTEM
Tool-Mounting Capacity for OD Machining: 6
Tool-Mounting Capacity for ID Machining: 3
For Back-End Machining: 2
Tool Spindle No: 2

FEEDRATES:
Cutting Feedrate: 1 - 6.000 mm/min
Rapid -Traverse Speed (Z1,T1,T2,B) = 16m/min, X = 12 m/min
Minimum Setting Increment: 0,001 mm
Minimum Travel Increment: 0,0005 mm (X), other Axes: 0,001 mm

MOTORS
Spindle: 5,5 kW
Sub-Spindle: 1,1 kW
X, Z, T1, T2 Axes: 0,4 kW
B-Axes: 0,4 kW
Tool Spindle: 0,45 kW

MACHINE SIZE & WEIGHT
Length x Width x Height: 2,10 x 1,10 x 1,62 m
Weight: 2000 kg

Equipped With:
Spego 12' Gatling Style Barfeed
Full C-Axis on Main and Indexing on Sub

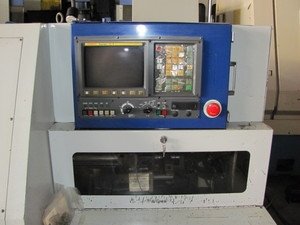

Fanuc OT Control
Misc Collet and Guide Bushings
Misc. Tool Holders.
Manuals

2000 kg
