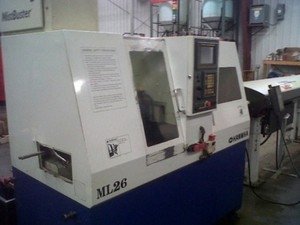

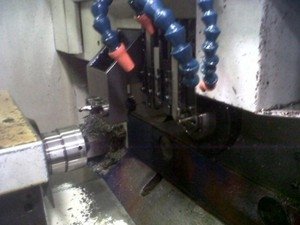

HANWHA, ML-26S, AUTOMATIC, SCREW MACHINES
  • Condition:Used
  • Category:SCREW MACHINES
  • Type:AUTOMATIC
  • Manufacturer:HANWHA
  • Model:ML-26S
  • YOM:1999
  • Location:United States, Colorado
  • Price:22500 USD
  • Stock No:-
  • Control:CNC
  • ID:AS14774
Description:
Hanwha ML-26S, 1", Fanuc 0TC, 1999, 50D/3ID/3BW, Sub-Spindle, Bar Feed Available
Specifications:
General Specifications as per Brochure:

Control: Fanuc 0TC
Axes: 4 (X,Z,C,Y)
Simultaneously Controlled Axes: 2 (X & Z)
Main Spindle:
Max. Bar Diameter: 1"
Max. Machining Length: 8.268" (210mm)
Spindle Speed: 200 - 6300 RPM
Motor: 3.7kw/5.5kw (30 min rating)
Sub-Spindle:
Max. Pick-Off Diameter: 1"
Max. Front Discharge Length: 2.75" (70.0mm)

Spindle Speed: 200 - 8,000 RPM
Motor: 1.5kw/2.2kw (30 min rating)
Rapid Traverse Speed:
Z/B/T1/T2 - AXIS: 944.9 IPM
X-AXIS: 196.9 IPM
Number of Tools:
OD: 5 Positions
ID: 3 Positions
Back working: 3 Positions
Coolant:
Tank Capacity: 39.63 Gallons
Pump Motor: .25kw
Dimensions (Approx.): 47" x 76" x 66"
Weight (approx): 5500 lbs

Equipped With:
MistBust Oil/Mist Collector
Part Catcher
Operations/Programming & Maintenance Manuals

New and Used Bar Feeds & Bar Loaders available.... Price on Request.
Assistance with application, tooling, Hi-pressure coolant systems and

transport available.

Machine: 81" x 51" x 86" 5,600 lbs
Chip Pan: 42" x 39" x 22" 150 lbs
Dimensions:
47.2" x 76.8" x 65.7"
Weight:
6,615 Lbs
