Control: ............................... Fanuc 18iTA
Normal workpiece diameter: ............. 12mm
Maximum Head Stock Stroke: ............. 140mm
Speed Range (Rpm): ..................... 200-12,000
Power Rating: .......................... 1.5/2.5Kw
Maximum Drilling Diameter: ............. 7mm
Maximum Tapping Diameter: .............. M6
Number of OD Tools: .................... 5
Number of ID Tools: .................... 3
Tool Shaft: ............................ 20mm
Sub-Spindle:
Nominal Workpiece Diameter: ............ 12mm
Speed Range (Rpm): ..................... 200-8,000
Power Rating: .......................... 0.5Kw
Number of BW Tools: .................... 3
Dimensions (LxWxH): .................... 5' x 3.5' x 5'
Weight: ................................ 3000 lbs

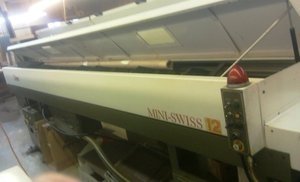

Complete with 12' MTA/Fedek Mini-Swiss Magazine Bar Loader
