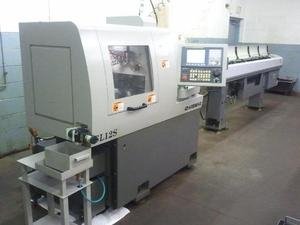

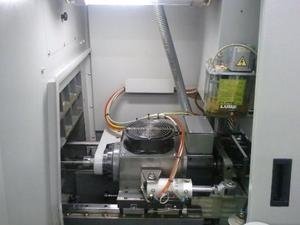

Hanwha SL-12S, 1/2", Fanuc 0iTC, 2006, 3 Live / 6 OD / 3 ID / 3 BW, Trace Bar Loader, Low Hours

General Specifications per Manufacturer's Brochure

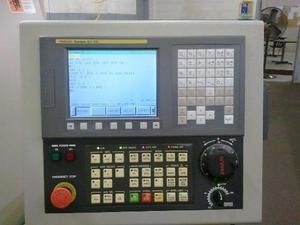

Control: Fanuc 0iTC
Number of Controlled Axes: 5 (X, Z, A, Y, C)
Minimum Input Increment: .001mm (.0001")
Minimum motion increment: .001mm (.0001")
Main Spindle:
Max Turning Diameter: 12mm (1/2")
Max Spindle Speed: 12,000 rpm
Stroke: 140mm
Additional Positive Brake: 1 degree

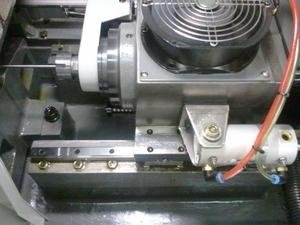

Sub Spindle:
Max Turning Diameter: 12mm (1/2")
Max Spindle Speed: 8,000 rpm
Stroke: 140mm
Max front ejction length: 50mm

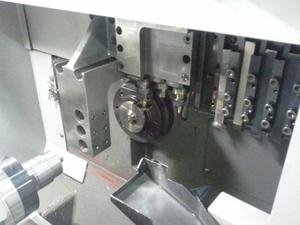

Tooling:
OD Tools: 6
Front Working Tools: 3
Back Working Tools: 3
Cross Driven Tools: 3
Max Drilling Diameter (front/back): 7mm
Max Tapping Diameter (front/back): M6
Max Drilling Diameter (cross): 7mm
Max Tapping Diameter (Cross): M5
Max Slotting Diameter (cross): 30mm
Motors:
Main Spindle: 1.5 / 2.2 kW
Sub Spindle: 0.65 / 1.1 kW
Cross Driven Tools: 0.4 kW
Servo Motor: 0.3 0.5 kW
Coolant Motor: 250 W
Lubrication Pump: 3 W
Power Consumption: 5 kW
Coolant tank Capacity: 140 L (37 gal)
Lubrication tank Capacity: .8 L (.2 gal)
Rapid Traverse Rate: 24 m/min (X: 15M/min)
Dimensions (approx - L x W x H): 67" x 51" x 69"
Weight (approx): 4200 lbs

Equipped With (to be confirmed by Buyer):

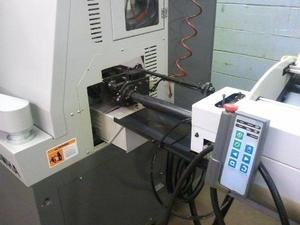

MTA Tracer Bar Loader (S/N 15080061)
Part Conveyor

Paid $130K in 2008

Approx 100 cutting hours!
Available immediately

67" x 61" x 69"

4200
