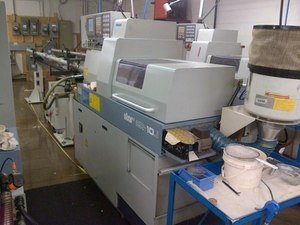

STAR SR10J, Fanuc, 3/8", 2006, 3 Live/6OD/4ID/4+4BW, C Main, 1 Sub, LNS HYS 3.12
Specifications:
General Specifications per Brochure
Max. Machining Diameter: 10mm(25/64in)
Max. Headstock Stroke
Stationary GB: 135mm (5-5/16in)
Revolving GB: 105mm (4-9/64in)
Number of Tools: 6 tools (8mm)
4-Spindle Sleeve Holder
Number of Tools: 4 Front
4 Back
Max. Drill Capacity: 6mm (15/34in)
Max. Tapping Capacity: M5XP0.8
Power Driven Attachment:
Number of Tools: 3
Max. Drilling Capacity: 4mm (5/32mm)
Max. Tapping Capacity: M3xP0.5
Main Spindle Indexing: C-Axis Control
Main Spindle Speed: 15,000 RPM
Main Spindle Motor: 2.2kw(continuous)/3.7kw(15min.)
Power-driven att. spindle speed: Max. 10,000min-1
Power-driven att. drive motor: 0.5kw
Coolant tank capacity: 85 l
Center height: 1,050mm
Power consumption: 3.5KVA
Backworking Attachment Specifications
Max. chucking diameter: 10mm (25/64in)
Max. length for front ejection: 70mm (2-3/4in)
Max. parts projection length: 20mm (25/32in)
Back 4-Spindle unit
Number of tools: 4 tools : OP
Max. drilling capacity
Stationary tool: 4mm (5/32in)
Power driven tool: 4mm(5/32in)
Max. tapping capacity:
Stationary tool: M3XP0.5
Power driven tool: M3XP0.5
Sub spindle min. indexing angle: 15 degree : OP
Sub spindle speed: Max. 10,000 RPM
Sub spindle motor: 0.55kw(continuous)/1.1kw(15min.)
Dimensions (W x D x H): 6' x 2.5' x 5.5'
Weight: 2100 lbs
Equipped With (to be confirmed by buyer):
LNS HYS 3.12 Gaitling Style Bar Feed (S/N 43272-2005)
C Axis on Main Spindle
1 Degree Index on the Sub Spindle
Filter Mist Mist Collector
Part Conveyor
Power On Hours approx 25120
Operating Hours approx 9865
