STAR SST-16, 5/8", FANUC 0TT, 1991, 12" STROKE, SUB, 2 LIVE TOOLS, FMB B/F

General Specifications per Manufacturer:

CNC Control: Fanuc 0TT
Max. Turning Dia.: 5/8"
Max. Headstock Stroke in one chucking: 12"
Max. Drilling Dia.: 5/16"
Max. Milling Dia.: 2/5"
Max. Slotting Capacity: 1.5mm x 4mm
Spindle Speed: 500 - 10000 rpm
Spindle Indexing: 15 degree
Main Spindle Motor: 2.2 kw/3.7 kw
Power Driven Attachment Motor: .4 kw
No. of Tools: 9
No. of Live/Rotary Tools: 2
Rotary Tool Speeds: 350 - 5000 rpm
Backworking:
Max. Chucking Dia.: 5/8"
Max. Length for Front Ejection: 5"
Max. Drilling Dia.: 1/4"
No. of Tools: 3
Sub-spindle Speed: 400 - 6000 rpm
Sub-spindle Motor: 1.5 kw
Weight (approx.): 5080 lbs
Dimensions (approx.): 6.73' x 3.25' x 5.53'
Equipped with (to be confirmed by client):

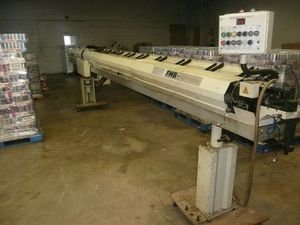

FMB Mini Turbo Magazine Type Loader
Material capacity: 13 bars at 20 mm.
Adjustable Feed Thrust
5 axis
32 bit CNC unit

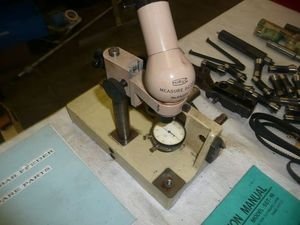

Tool Presetter
Synchronous Control of X-Y Axes
3 phase power supply
Z Axis Contains 310mm stroke

6.73' x 3.25' x 5.53'

5080 Lbs
