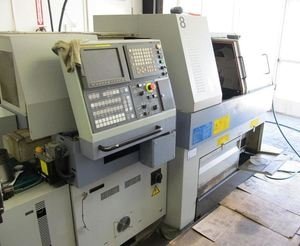

STAR SV32J, 1 1/4", Fanuc 18iTA, 2000, Gang/Turret, 3 Live Tools, 8-Axis, LNS HYS

General Brochure Specifications For the Star SV-32J

Control: Fanuc 18i-TA
Max Turning Diameter: 1-1/4"
Headstock Stroke: 12-13/64"
with gripping unit; 11-4/5"
Headstock Spindle Speeds: 350 - 7,000 rpm
Spindle Indexing: 15 deg
Drilling Capacity: Stationary Tool 3/4"
Power Driven Tool Gang Tool Post 5/16"
Number of Tools: 4 tools+3 power-driven opt
Turret 8 stations
Tool Shank: 16 x 135mm
Turret 16 x 70mm
Tapping Capacity: Turret M12 x P1.75
Power Driven Tool Gang Tool Post M6 x P1.0 opt
Milling Capacity: 25/64"
Max. Die Cutting Capacity: M12 x P1.75
Main Spindle Motor: 5.5kw (cont)/7.5kw (30 min)

Main Spindle Bore Diameter: 1 1/2"
Tool Shank: 16 x 135mm
Turret 16 x 70mm
Gang Tool Post Power Driven Tool: Spindle Speed max. 6,000min opt
Motor 0.5kw (servo drive)
Power Consumption: 8.0kva

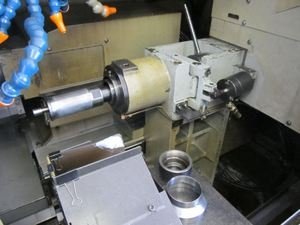

Backworking Attachment:
Max. Chucking Cap.: 1-1/4"
Drilling Capacity: 1/2"

Tapping Capacity: M10 x P1.5
Spindle Speeds: 350 - 7000 rpm
Sub-spindle Motor: 2.2kw(continuous)/3.7kw(15min)
Dimensions, approx (l x w x h): 7' x 4' x 5.5'+
Weight (approx): 7100 lbs.

Equipped with (to be confirmed by buyer):
LNS HYS 6.32 Hydrodynamic Barfeed (S/N 0149)

Machine: 128" x 52" x 70" 7,100 lbs
Barfeed on stands: 200" x 36" x 48" 1,800 lbs
Barfeed Hydraulic Tank: 36" x 24" x 36", 750 lbs
Chip Pan: 52" x 44" x 22" 350 lbs

7' x 4' x 5.5'

7,100 lbs
