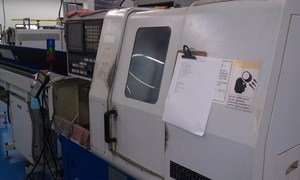

Control: Fanuc 32i-A
Number of Axes: 5 (X1, X2, Z1, Z2, A)
Max. Diameter: 20 mm (3/4")
Max. Workpiece Length: 170mm
w/ Integral Rot. Guide Bushing
Max. Spindle Tapping Dia. (Main/Sub): M6 x 1
Max. Spindle Drill Dia. (Main/Sub): 7mm
Max. Rotary Tool Drilling Dia.: 6mm
Max. Rotary Tool Tappinf Dia.: M5 x 0.8
Spindle Speedss(Main/Sub): 200-12,000 rpm
Tool Size: 12 x 12 x 85mm
Tools: 8 OD
4 ID
3 Live
8 Back Working
Indexing: 1 degree indexing
Motors:
Main: 1.5/3.7 kW
Sub-spindle: 1.5/2.2 kW (built-in motor drive)
Rotary Tool: 0.75 kW
Power Requirement: 11 kVA

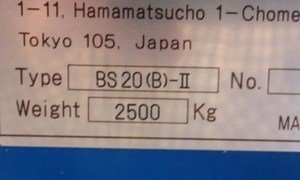

Weight (Approx): 6960 lbs
Dimensions (Approx): 5' x 4' x 5.5'
Equipped With (To be confirmed by buyer):

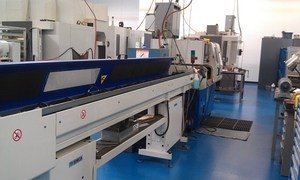

Iemca Smart 316 Magazine Type Loader, New 2005 (S/N 020537RA01)
MP Systems 1000 psi high pressure coolant system w/ 4 outputs
Patrol light
Coolant thru sub spindle
Parts conveyor
BK micro drill breakage unit
NSK 30,000 RPM High Speed Spindles ...... Price on Request
Note: Original ID/BW block is included with machine.
Parts Conveyor also included.
