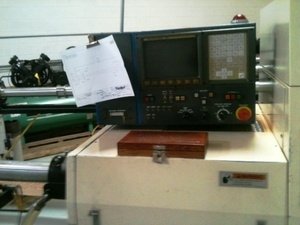

Control Fanuc LB2
(Fanuc FS21-TB)
Maximum Bar Diameter: 1/2"
Z Axis Travel:
Fixed Guide Bushing: 6.70"
Chucker Model: 1.77"
Driven Guide Bushing: 3.15"

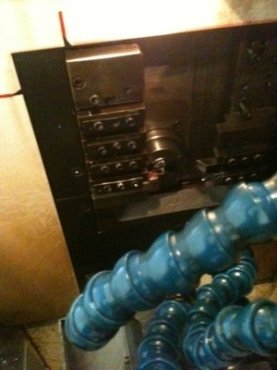

# of Tool Stations: 7 O.D.
3 I.D.
Main Spindle:
Spindle Speed: 200 TO 12,000 RPM
Power Rating: 3
Programmable Servo Axis Designations:
"Z" Main Headstock In and Out: 6.70"
"T1" O.D. Tool Slide Up and Down: 3.94"
"X" O.D. Tool Slide Left and Right: 1.26"
Sub-Spindle Specifications:
Speed Range: (B&K MODELS ONLY) Fixed 1K,2K & 5K RPM
Power Rating: (B,E,K & M MODELS ONLY) 1/2 HP
Dimensions (Approx.): 39" X 27" X 34"
Weight (Approx.): 3,750 Lbs
EQUIPPED WITH (To be confirmed by the Buyer):

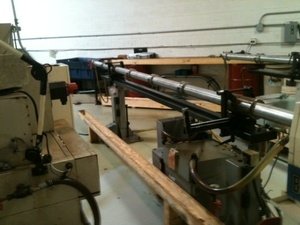

LNS HYS Bar Feed
