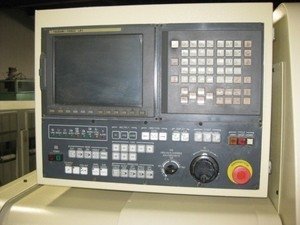

Control: Fanuc 18iTA (LK1)
Controllable Axes: 5 (X1, Z1, A, X2, Z2)
Maximum Bar Diameter: 0.500 inches
Linear Ball Ways: X and Z
T Axis Brake
Z Axis Travel-Fixed Guide Bushing: 6.69 inches
-Driven Guide Bushing: 3.15 inches
Programmable Servo Axis Designations
Z Main Headstock In and Out: 5.51 inches
T1 OD Tool Slide Up and Down: 3.94 inches
X OD Tool Slide Right and Left: 1.26 inches
Y OD Tool Slide Right and Left: 1.26 inches (7-Axis Models)
Main Spindle:
Spindle Spindle: 200-10,000 RPM
Spindle Indexing: C-axis
Spindle indexing degrees: .001 deg
Horsepower: 2.2 kW

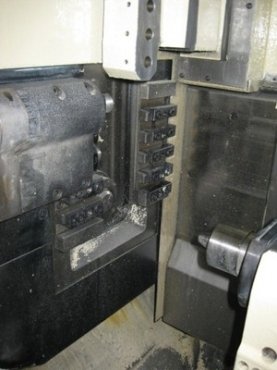

Number of Tool Stations:
7 O.D. Tools
3 Cross driven tools (200-5000 RPM)
3 I.D. Tools
3 Back working tools
Sub-Spindle:
Speed Range: 200-5,000 rpm
Horsepower: 2.2 kW
Indexing: 15 Deg
Weight (apprx): 4,350 pounds
Dimensions (L x W x H - approx): 66" x 43" x 66", approx
Equipped With (To be confirmed by Buyer):

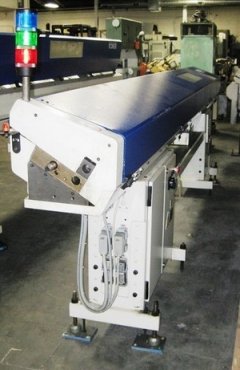

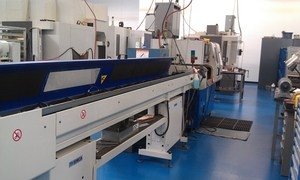

Iemca Mini Boss 325 Magazine Bar Loader
Main spindle Full C-Axis
Sub-Spindle 15 deg indexing
Work-Light
