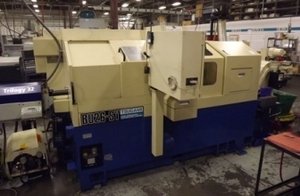

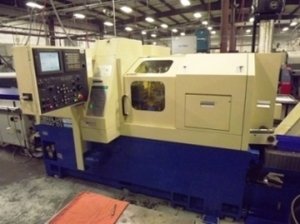

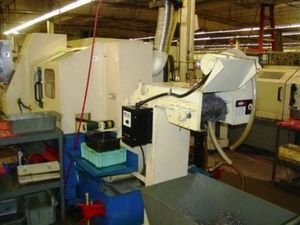

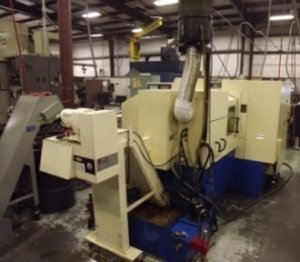

Tsugami BU26SY, 1", Fanuc 16iTB, 2004, Gang-Turret, Sub-Spindle, Loader

General Specifications As Per Brochure
* The Tsugami BU26Y (1" capacity) is a benchmark that sets the rules for
power, rigidity, and longevity; it is the future of the swiss-type machine
technology.

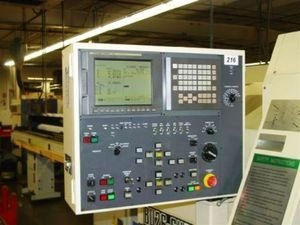

* Now, taking advantage of new control technology with Fanuc 18iT control,
increased power and drives it's more efficient than ever.

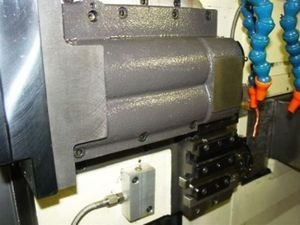

* A wide assortment of driven tools for the rear turret driven tool stations
is available, also included are driven cross tools on the front slide, making
this the most flexible of models.

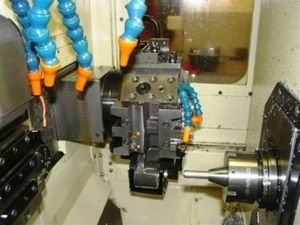

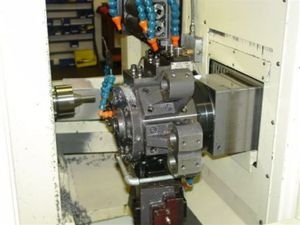

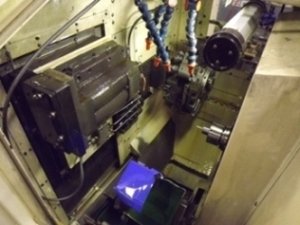

* An 8-station turret (3-axis), plus an independent gang tool slide with
driven tools permits many simultaneous functions. Balanced turning, balanced threading, simultaneous front and back working.

* Standard are a 15hp main spindle, 7.5hp sub-spindle with through feed
capability, 8-axis including x1,x2,z1,z2,z3, and y. Excellent for complex
machining.

Main Spindle
Bar Capacity: 1.000"
Turning lengths: 9.842 " per stroke
Indexing Inccrements: Full C-Axis (.001 deg)
Speeds: 6000 RPM

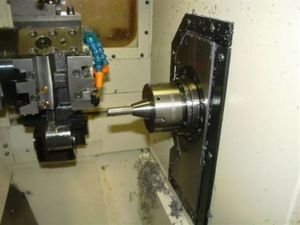

Sub-spindle
Bar Capacity: 1.000 "
Speed: 200 - 5000
Drive motor: 7.3 hp
Index increment (DEGREES): full C-axis (.001 deg)
Axis specifications
STD. Number of Axes: 8
axis/ travel/ traverse rate/ feed rate
X1 (sTD.) 1.378 inch 472 ipm 236 ipm
Z1 (sTD.) 9.842 inch 944 ipm 236 ipm
C1 (sTD.) 360.000 dEG.
Y1 (sTD.) 9.448 472 ipm 236 ipm
X2 (sTD.) 4.330 inch 472 ipm 236 ipm
Z2 (sTD.) 5.511 inch 944 ipm 236 ipm
Y2 (sTD.) 3.149 inch 393 ipm 236 ipm
Z3 (oPT.) 11.220 inc 944 ipm 236 ipm

Live tool Speed: 5000 RPM
Live tool motor: (hp): 15.0

Type/ Gang-Slide/ Turret
-Max. number of tools
Turning 7 8
Rotary 2 4
Square 0.500 "
Round 0.750 " 1.000 "
Rotary 0.250 " 0.500 "
-Rotary tooling
Horse power .7 1.9
Speed 8000rpm 5400rpm
There are a number of tools offered that allow for 2 - 4 tools on one holder

On-center mill drill Standard with 'c' axis
Off-center mill drill Standard with 'y' axis

Machine net weight(POUNDS): 13200#
Floor layout: Length: 137 " x Width: 80 " x Height: 69 "

Machine includes all Static ID/OD Tooling, (1) 3233-Y310 cross drill for
X-axis, (1) 3233-Y490 double cross drill with one facing the main and one

facing the sub for Z1 and Z2 axis, REM Cool Hi-Pressure Coolant System, Royal ist Collector, Chip Conveyor & Parts Conveyor, Manuals, Iemca Trilogy Bar Feed
