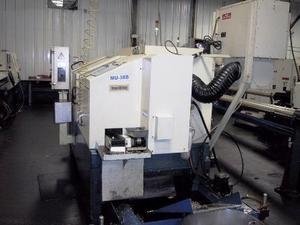

1 1/2" TSUGAMI MU38SY, Fanuc 18I-TA, 2004, 8-axis, dual turret, y-axis, LNS

General Specification as Per Brochure

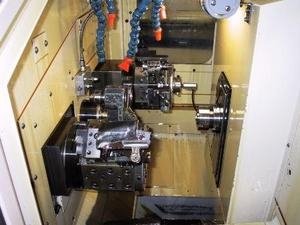

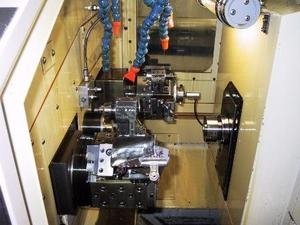

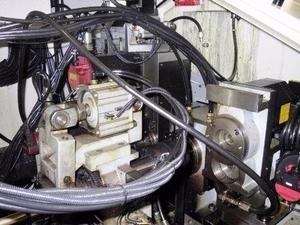

Dual Turret with Y-axis
Coolant through the turret & tool

Control: Fanuc 18iTA
Simul. Control Axis: 6 (2+4)
Least Input Increments: 0.0001in (diameter for X-axis)
Stock Diameter: 1.500"
Max. Machining Length: 9.8"
Max. Drilling Dia.: .63" in 1045 steel
Max Tapping Diameter: 1/2" in 1045 steel
Height of Sp. Center: 1,000 mm (39.37")
Spindle Speed: 60 to 5,000 rpm
Motor Output: 11 kw (14.7 hp)
Cutting Torque: 35 nm
Spindle Indexing: C-axis (.01 degrees)
Number of Turrets: 2
Number of Mountable Plane: 8 surfaces per turret,
3 tool locations per surface
Indexing Time: T1: 0.2 sec/pos.
T2: 0.3 sec/pos.
Idle Time (chip to chip): T1:0 to 1.5 sec
T2: 0 to 1.7 sec
Indexing Method: Servomotor
Max. Speed of Drive Axis: T2 Turret 5,400 rpm
Back Spindle:
Spindle Speed: 60 to 5,000 rpm
Motor Output: 5.5 kw (7.5 hp)
Cutting Torque: 14 n-m
Spindle Indexing: 5 deg. (72 div.)
Feed:
Stroke: X1,X2: 3.15"
Z1: 9.8"
Z2: 5.51"
Y(T2 Turret): 3.15" (Y & SY)
Z3: 11.22"
Rapid Traverse: X1, Z1, Z2, Z3: 787 ipm
X2: 472 ipm
Y: 394 ipm (Y & SY models)
Dimensions, Approx (w x d x h): 139 x 81 x 70"
Weight (Approx): 11,500 lb

Equipped with (to be verified by buyer):
Part Conveyor
Chip Conveyor
REM Cool High Pressure Coolant System

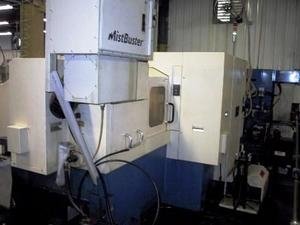

Mist Collector

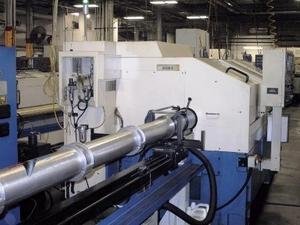

LNS HYS 6.38 Gatling-type Super hydrobar Hydraulic Barfeed
Tooling (2) Cross Drills (1) Face Drill, (6) ID Tools, (6) OD Tools
C-axis main Spindle
C-axis sub-spindle
Note: Sub-spindle has a full "C" axis with out a Sub-spindle disc brake. It is
excellent for positioning, and contour milling, but no mechanical brake for
locking. Back Spindle Brake & Timing Belt upgrade (3234-Y320 & 3233-Y551) is
approximately $15,300 + installation.

139" x 81" x 70" (H)

11,500
