- Maximum Pitch Diameter, External..................... 10"
- Maximum Pitch Diameter, Internal..................... 10"
- Maximum Face Width Internal & External.......... 2"
- Maximum Diameter Swing................................ 19"
- Maximum Diametral Pitch, Spur......................... 4
- Maximum Diametral Pitch, Helical...................... 5
- Maximum Helix Angle with Standard Guides...... 45 Degrees
- Speed................................................................350-659 SPM
- Horsepower.......................................................5 HP
- Approximate Machine Dimensions..................... 97" x 58"
- Approximate Machine Height............................ 119"
- Approximate Machine Weight.......................... 11,000 Lbs

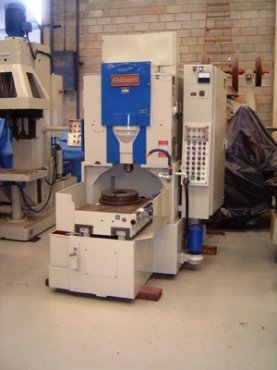

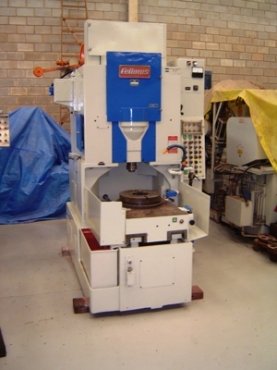

Rebuilding in 2008

53"x119"x97"

11,000 lbs
