The machine is in excellent condition with all the accessoris, located in a German plant
Specifications:

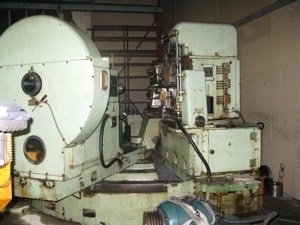

Saratov Bevel Gear Generator
Model: 5A284,
Year: 1979
Manufacturer: Saratov
Country of origin: Russia
Max diameter – 1600 mm;
Max external modul – 25 mm;
Max middle cone distance – 710 mm;
Max width of gear wreath – 250 mm;
Min cone corner – 5 degr;
Number of teeth – 10 – 150;
Diameter cone apertures of a spindle 200 mm;
Distance from an end face of a spindle to the semiautomaticc device centre 400-1150 mm;
Max radial instaliation of a tool spindle – 640 mm;
Rotation frguencies of spindle tool – 8-62 rpm;
Nominal diameter of toothcutting heads – 500-1000 mm;
Main Motor capacity – 15 kW;
Machine dimension: 5600x5000x3200 mm;
Machine weight – 44 to
