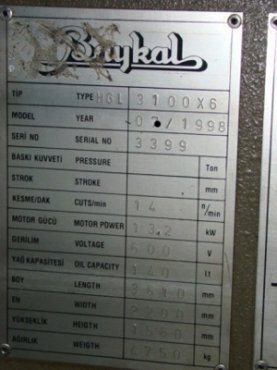

SPECIFICATIONS:
Maximum cutting length 122"
Maximum shearing capacity--mild steel 1/4"
--stainless 5/32"
Number of holddowns 16
Rake angle 1.6 degrees
Cuts per minute 14 SPM
Backguage length 30"
Main motor power 17 HP
Electrics 550/3/60
Dimensions (L x W x H) 139" x 72" x 60"
Net weight, approx. 10,450 lbs
STANDARD FEATURES & ACCESSORIES:

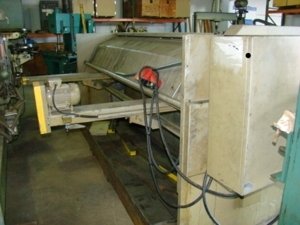

30" programmable NC front-operated power backgauge with digital inch/metric
display, stroke counter, manual or automatic positioning
Two (2) front arm supports (36"), 40" side squaring arm with scale
Rapid blade-clearance adjustment device, Shadowlight,
Electronic foot switch on a trailing lead

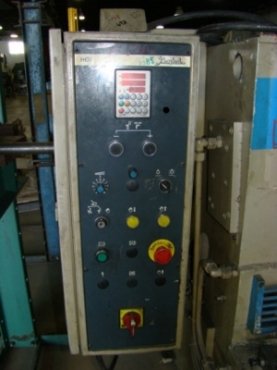

Low voltage at the controls, Stroke counter
Can by run in single, continuous; inching control via push buttons
