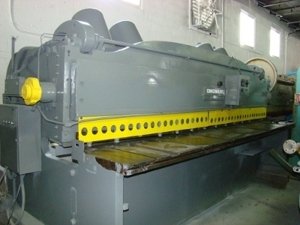

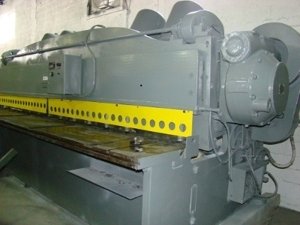

13' X 1/4", 48" front operated power back ga., 10' squaring arm
Specifications:
Model 25-13
Year of Manufacture 1962
SPECIFICATIONS:
Capacity (mild steel) 1/4"
Overall cutting length 159"
Depth of gap 18"
Number of strokes per minute 50
Number of holddowns 13
Backguage length 48"
Holddown to knife edge 7/8"
Distance under holddowns 1/2"
Total holddown pressure 10 tons
Rake taper per foot 1/4"
Ram adjustment 11/16"
Size four-edge knives 1" x 4" x 13'3"
Main motor power 15 HP
Electrics 230/460/3/60
Net weight 39,900 lbs.
Dimensions (W x D x H) 200" x 84" x 86"
Pit required 14"
EQUIPPED WITH:

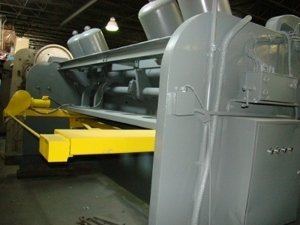

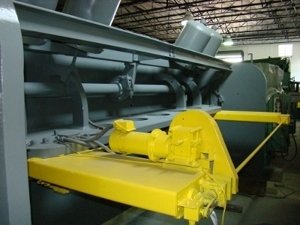

Power front operated back guage--48", 10' squaring arm
