Description:

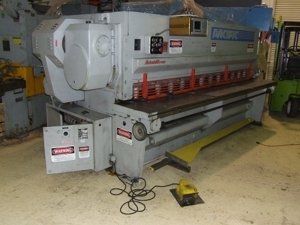

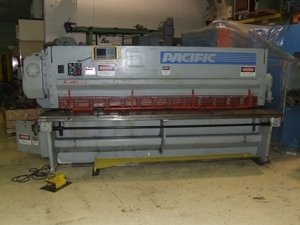

Pacific 10' x 1/4"

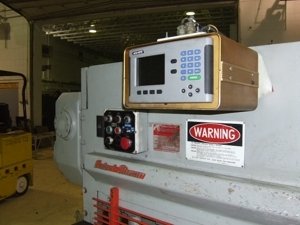

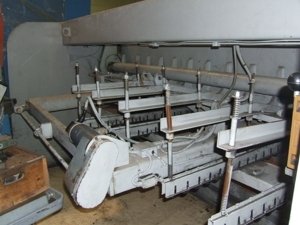

S# 0543-S11150/E, Model FS210-10, Gap frame 19.68", Distance between housings 128.7", Dial in gap adjustment for blades, Ball transfer on table, Front operated back gage with magnetic sheet hold down and light ga. steel sheets x 36" of depth, 10' Squaring arm, One shot lube system, Main drive motor 10hp 230/460v 3ph, Back gage motor 1hp 230/460v 3ph, Air pressure required 85-95 psi, Strokes/Min 50, Overall dim. 13' 2"L x 7'FB x 7' 3"H, Est. Wt. 21,560 lbs
Specifications:
Pacific 10' x 1/4"
S# 0543-S11150/E, Model FS210-10, Gap frame 19.68", Distance between housings 128.7", Dial in gap adjustment for blades, Ball transfer on table, Front operated back gage with magnetic sheet hold down and light ga. steel sheets x 36" of depth, 10' Squaring arm, One shot lube system, Main drive motor 10hp 230/460v 3ph, Back gage motor 1hp 230/460v 3ph, Air pressure required 85-95 psi, Strokes/Min 50, Overall dim. 13' 2"L x 7'FB x 7' 3"H, Est. Wt. 21,560 lbs
Dimensions:
12'x7'x7'
Weight:
21560lbs
