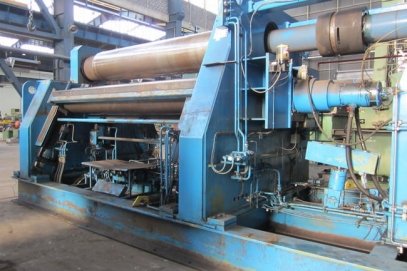

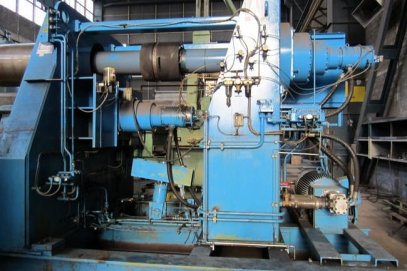

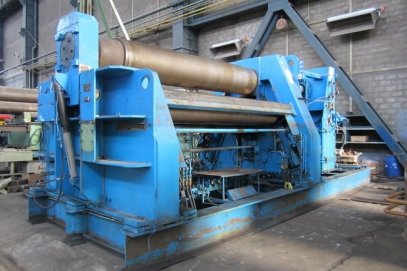

Technical Data: Max Max sheet width 3500 mm Maximum sheet thickness at. Yield strength 240 N / mm for the pre-bending on max. Sheet width 55 mm for bending-2.000 mm in the Round 65 mm for bending 2000 mm Anbiegelänge at s = 45 mm X = 2 à roll diameter upper and lower roll 655 mm side rollers 530 mm Smallest bending diameter 720 mm Number of rolls 4 driven rollers 2 upper min and the lower roller drive rollers by hydraulic motor operating speed of 4 m / [...Technical data truncated]
