Coil-weight 2000 kg
Coil-ad 1500 mm
Strip width 360 mm
expanding 420-520 mm
• Band-straightener

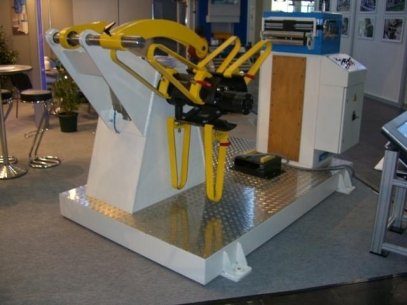

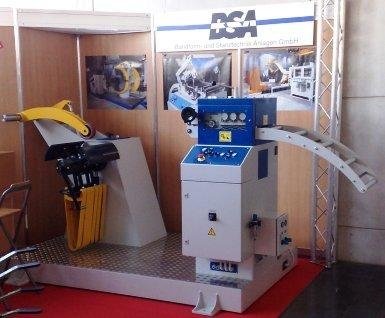

Model: R-65/360/7-EM-PZ
Strip widths 360 mm
Strip thickness 0,6-4,5 mm
Band-cross-section (b.400 Nmm²) 800 mm²
straightening rolls 7
straightening rolls diameters 65 mm
pinch rolls 2
pinch rolls diameters 65 mm
strip-speed 0-20 mtr./min
power 2,2 kilowatts
Production
Coiler:
• without drive, the band-departure takes from the straightener
• the expanding is mechanically, manual,
• pressarm pneumatically AP, operates from the control,
Straightener:
• in –and outflow-roll-basket,
• all rollers hardened and honed and in needle bearings stored
• one-sided draw rollers, at the go-in-side,
• Draw rollers-feed motion pneumatically PZ, operates from the control
• Band-side-leadership, by hand centrically and eccentrically adjustable,
• Drove over –STÖBER gear-motor with chain-instinct
• self-adjusting drive over Siemens-frequency-converters with,
• Band-strap-control, over touch-draws lots contact-counter, installed in a holder, with
• feed motion of the rollers are manuel, all above rollers has a separate manuel feed motion, and can
controle about Meter's .
