Dishing set:

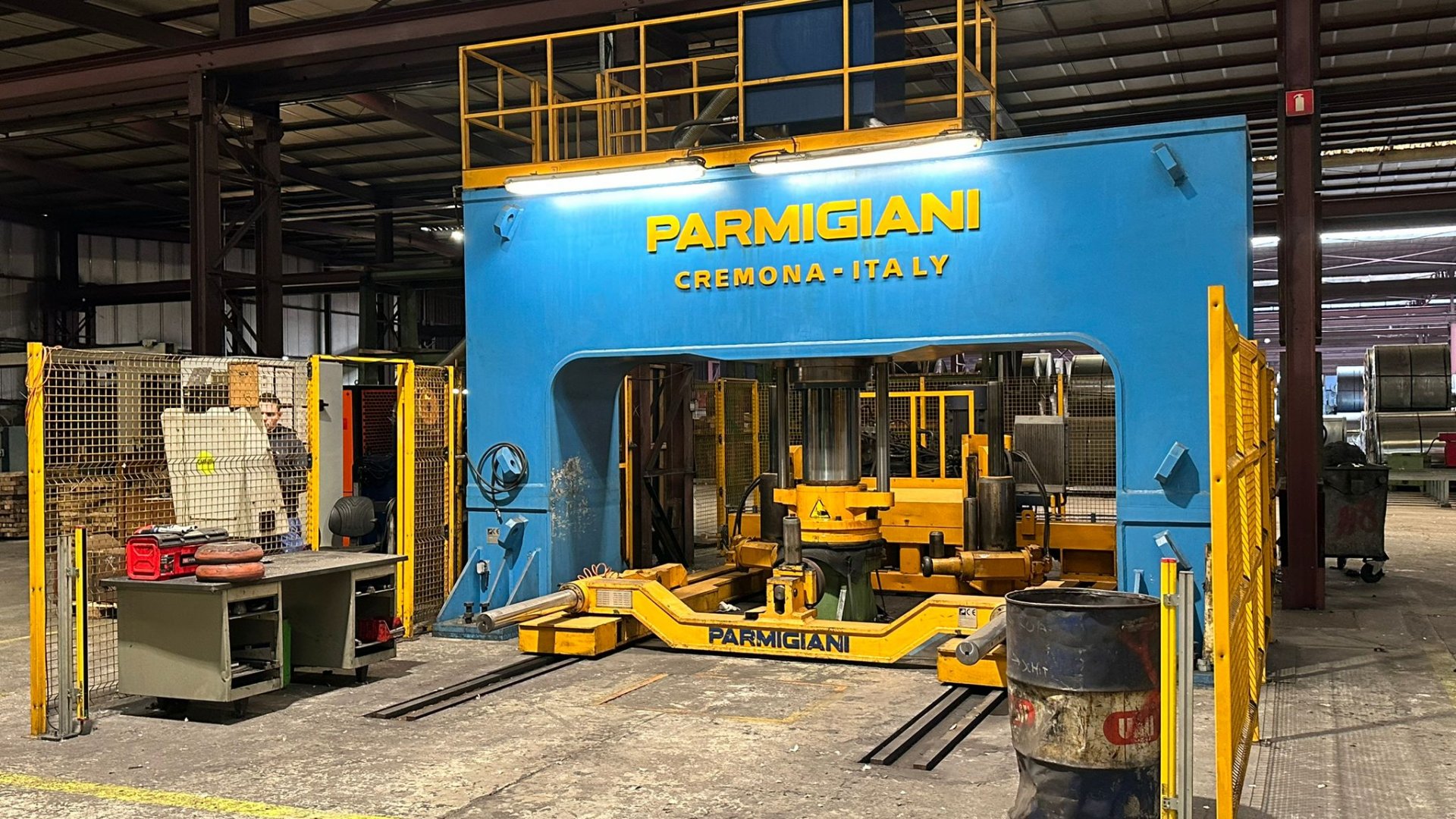

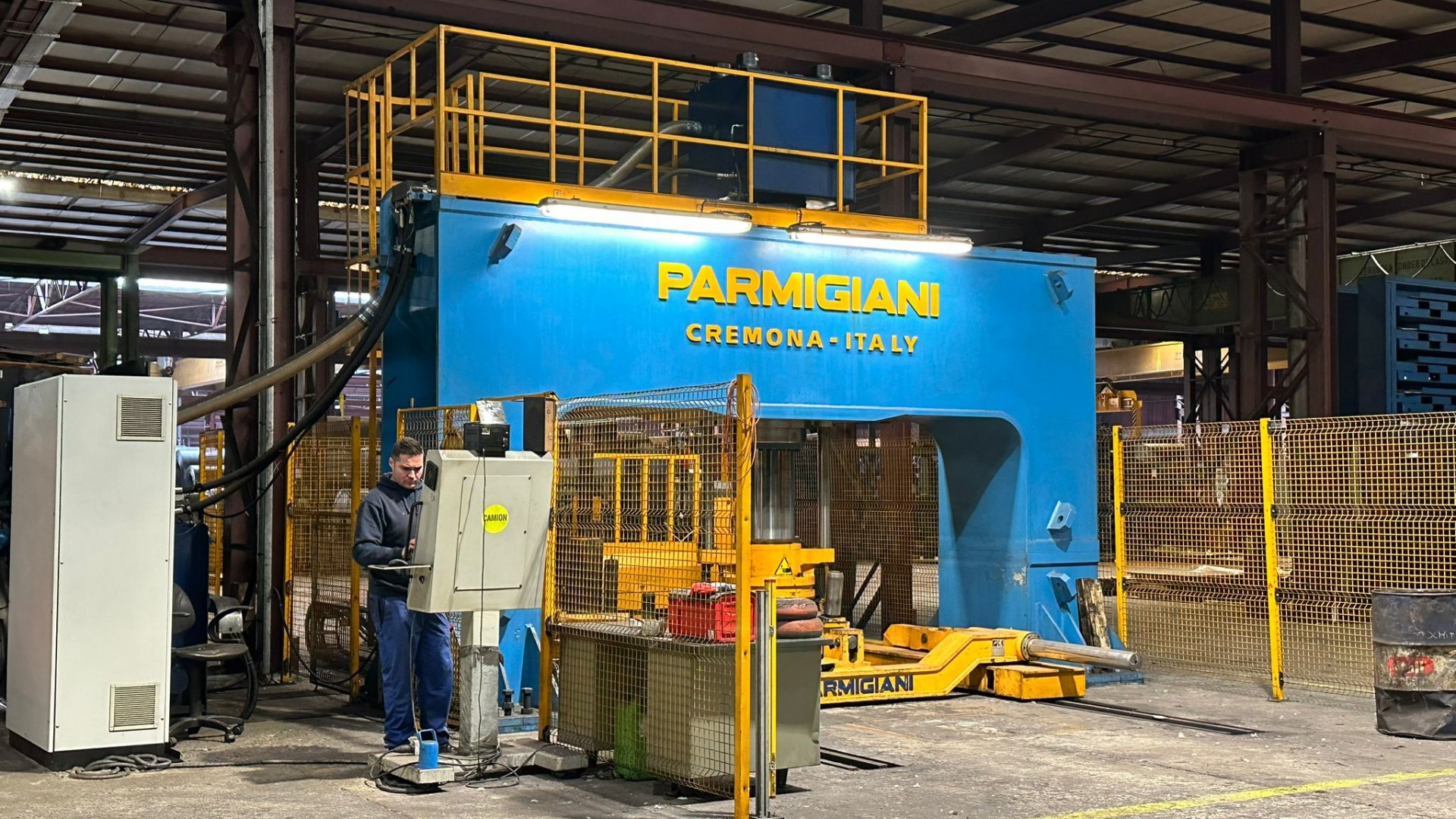

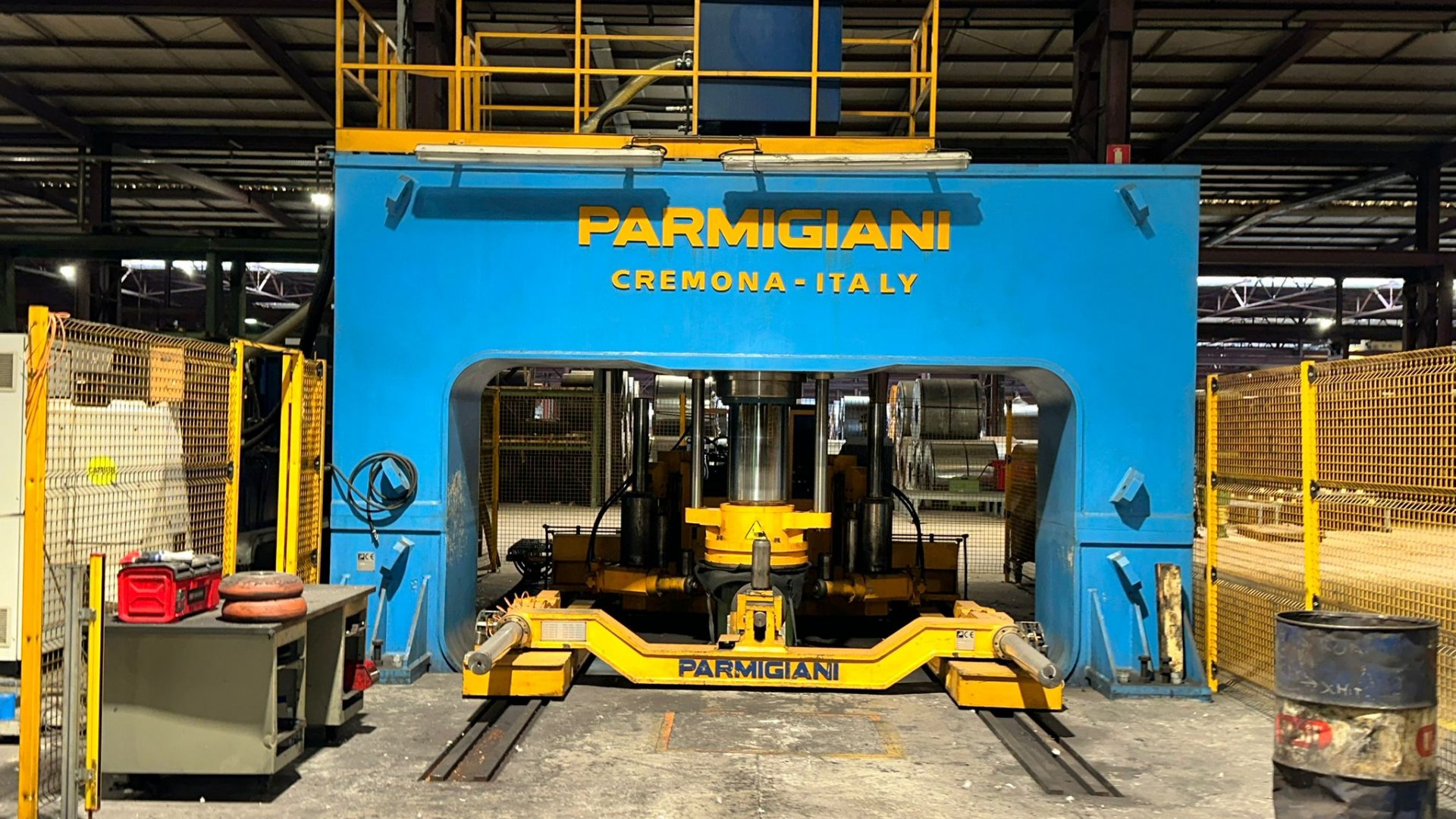

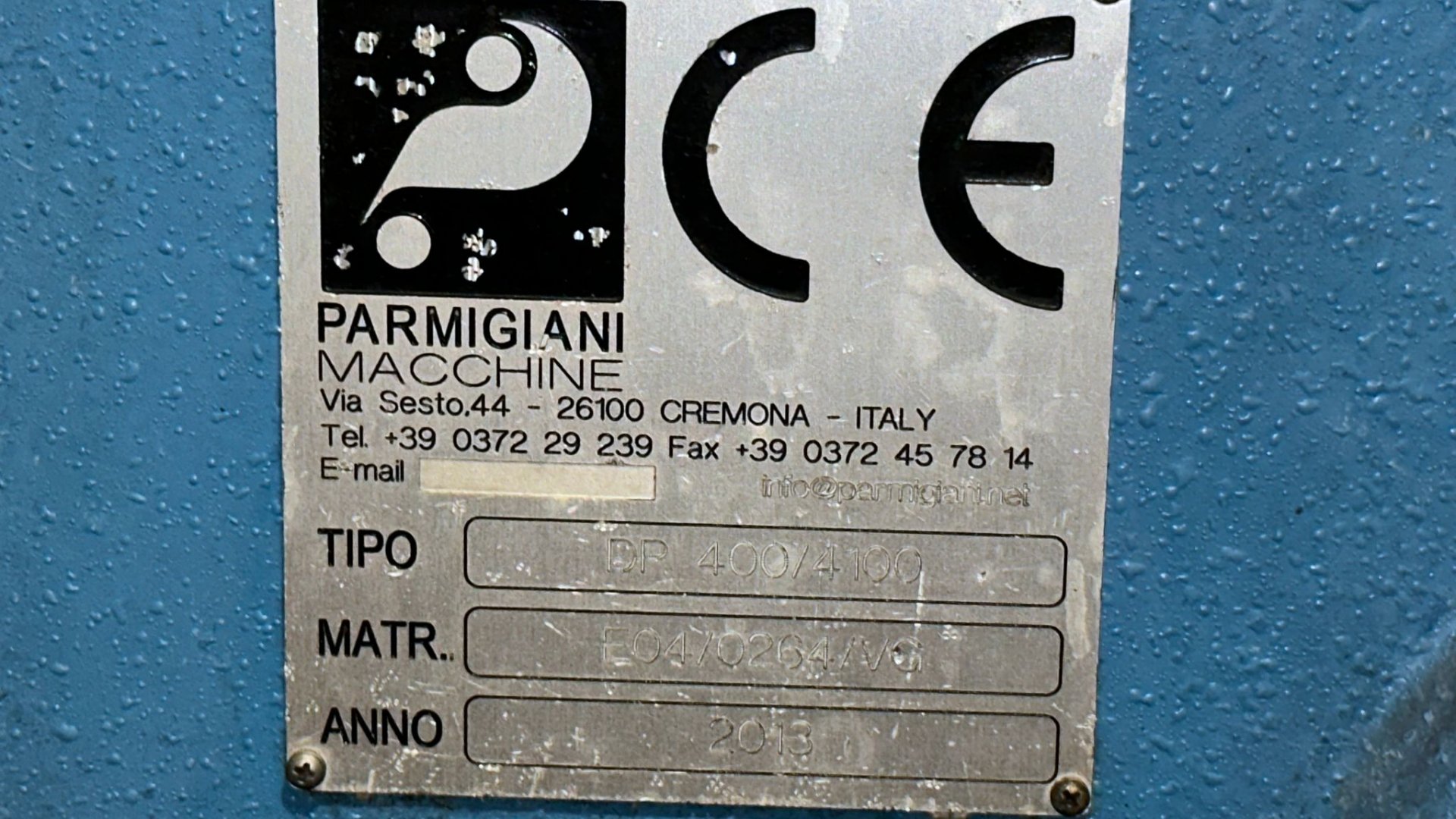

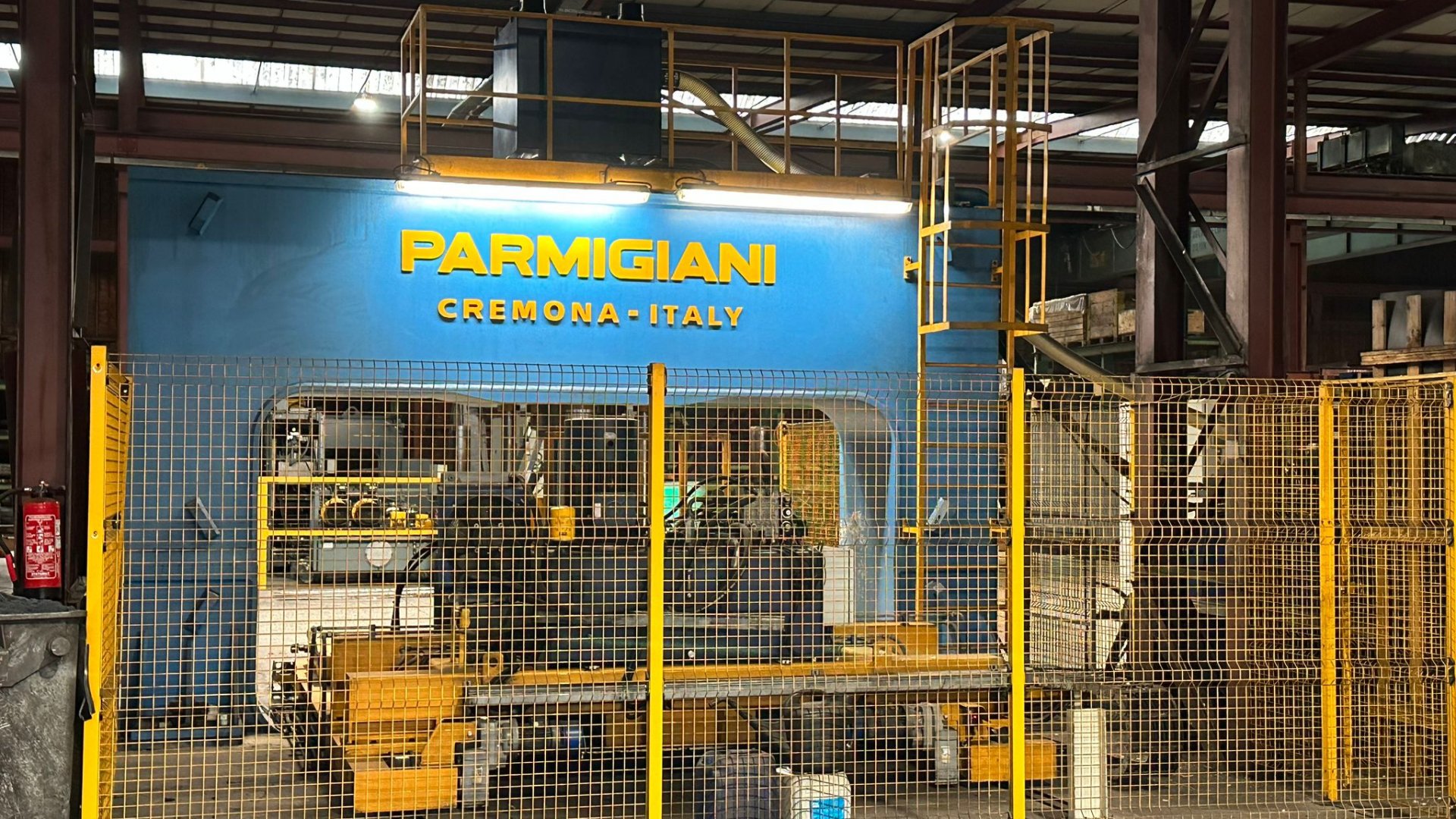

Dishing press Parmigiani DP 400

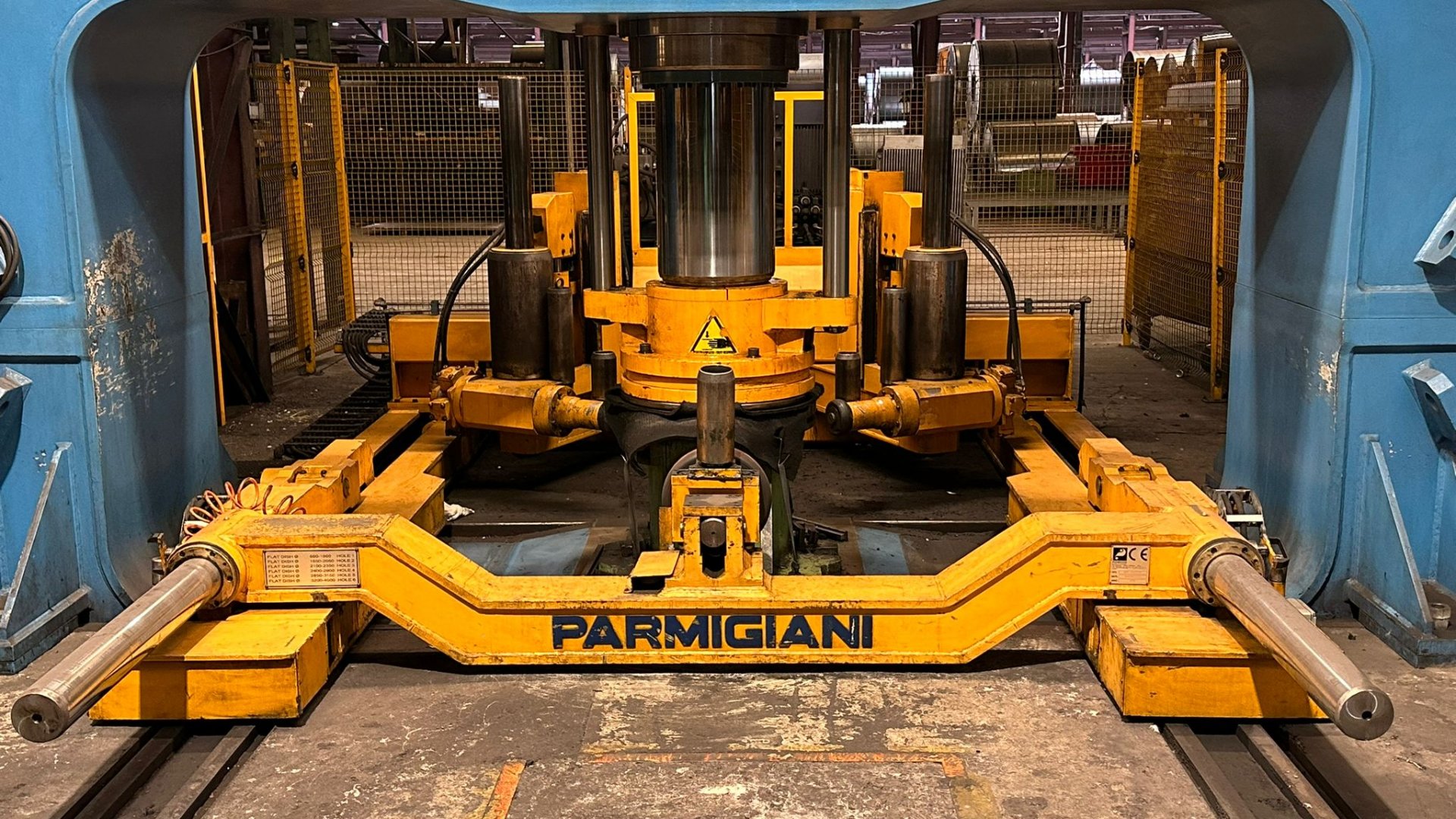

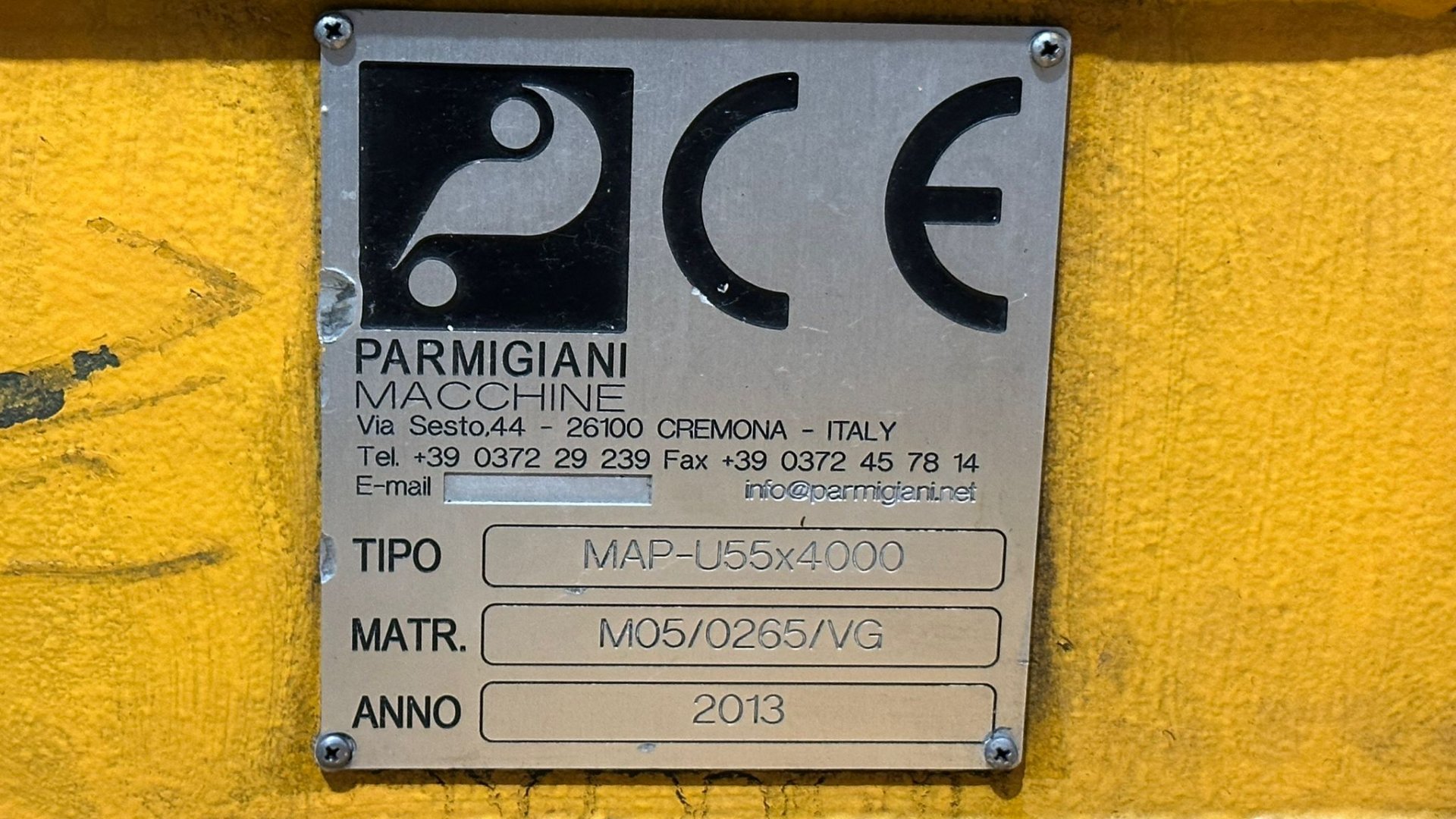

Dishing manipulator Parmigiani MAP-U 55 x 4000
Dishing weight 5500 Kg
Max. Dishing diameter 4000 mm
Min. Dishing diameter 900 mm
Weight manipulator 11.500 Kg
Power manipulator 30 kW


Capacity Kg: 400000
Distance between column:4100mm
Table Length: 1000mm
Table Width: 900mm
Ram stroke: 600mm
Approche speed: 18000mm/min.
Working speed: 190mm/min.
Return speed: 18000mm/min.
Power: 110kW
Length: 7000mm
Width: 8000mm
Height: 5000mm
Weight: 50000kg

Basket bottem

Knocker bottom
Pressure vessel bottom
Boiler bottoms
Flat floor
Plate base
diffuser bottom
Tank bottom
Tank bottom
radar reflectors
engine parts
Dispense air
Silo hoppers
cooker hoods
container parts
Hemispheres
