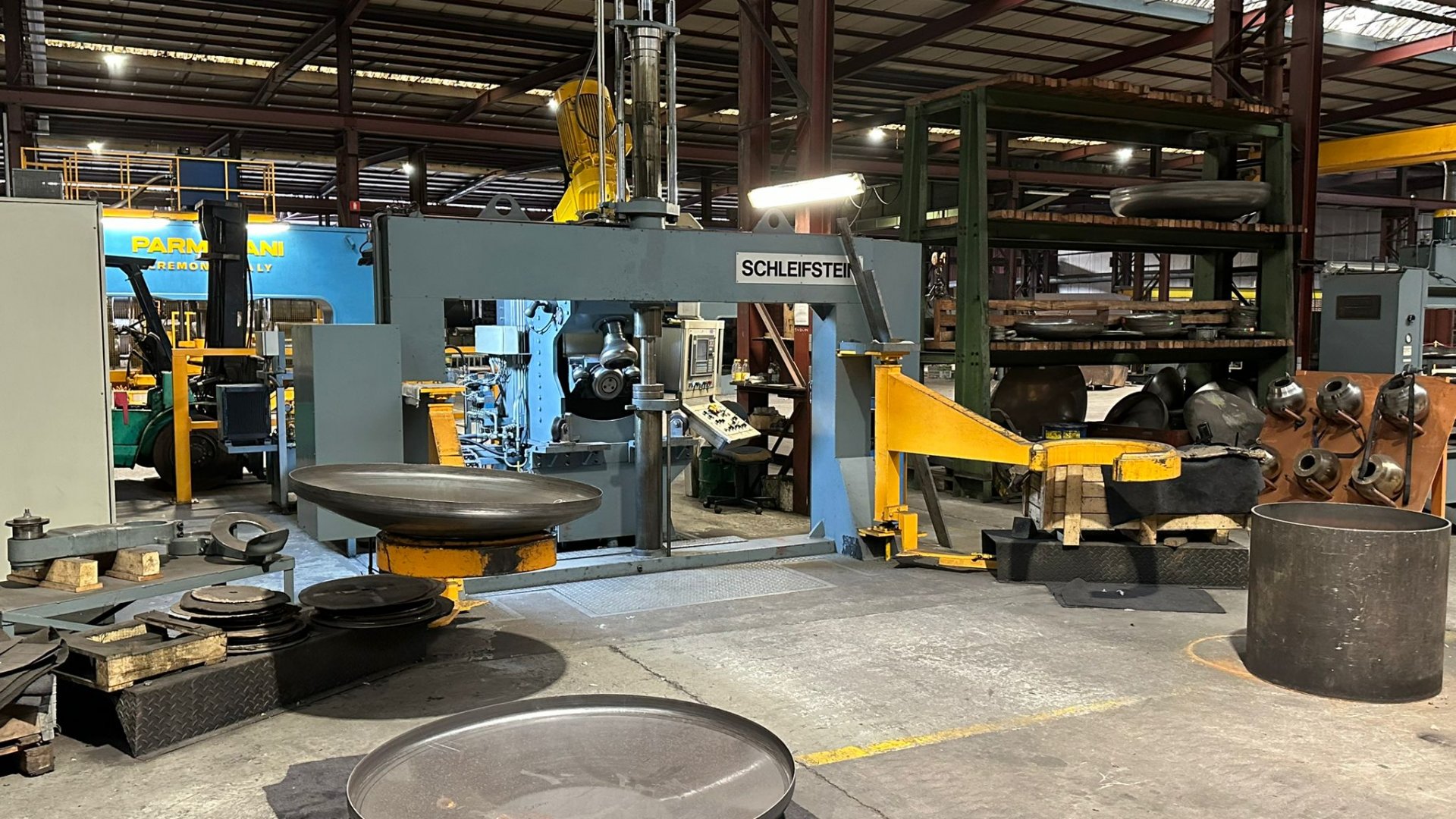

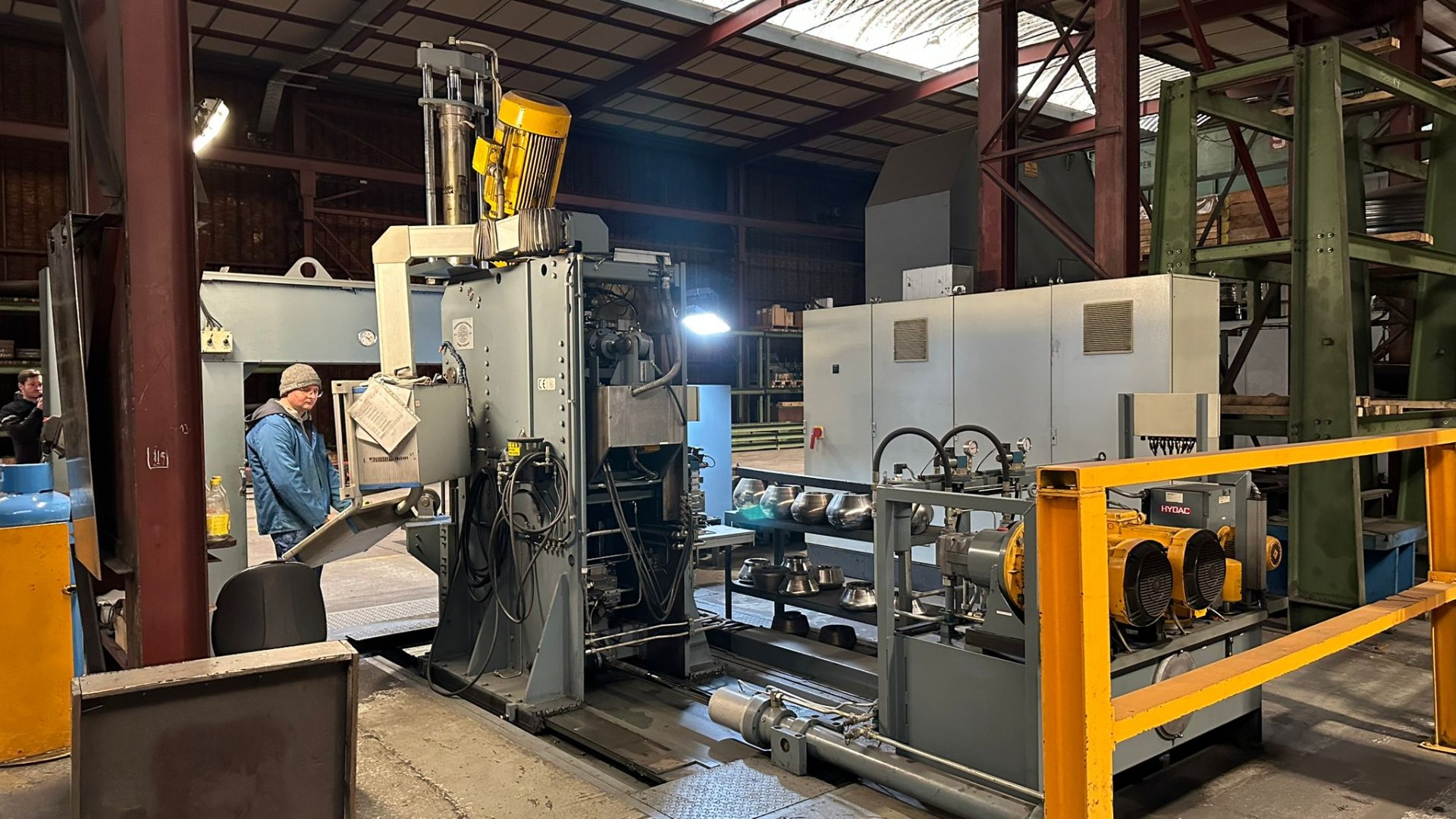

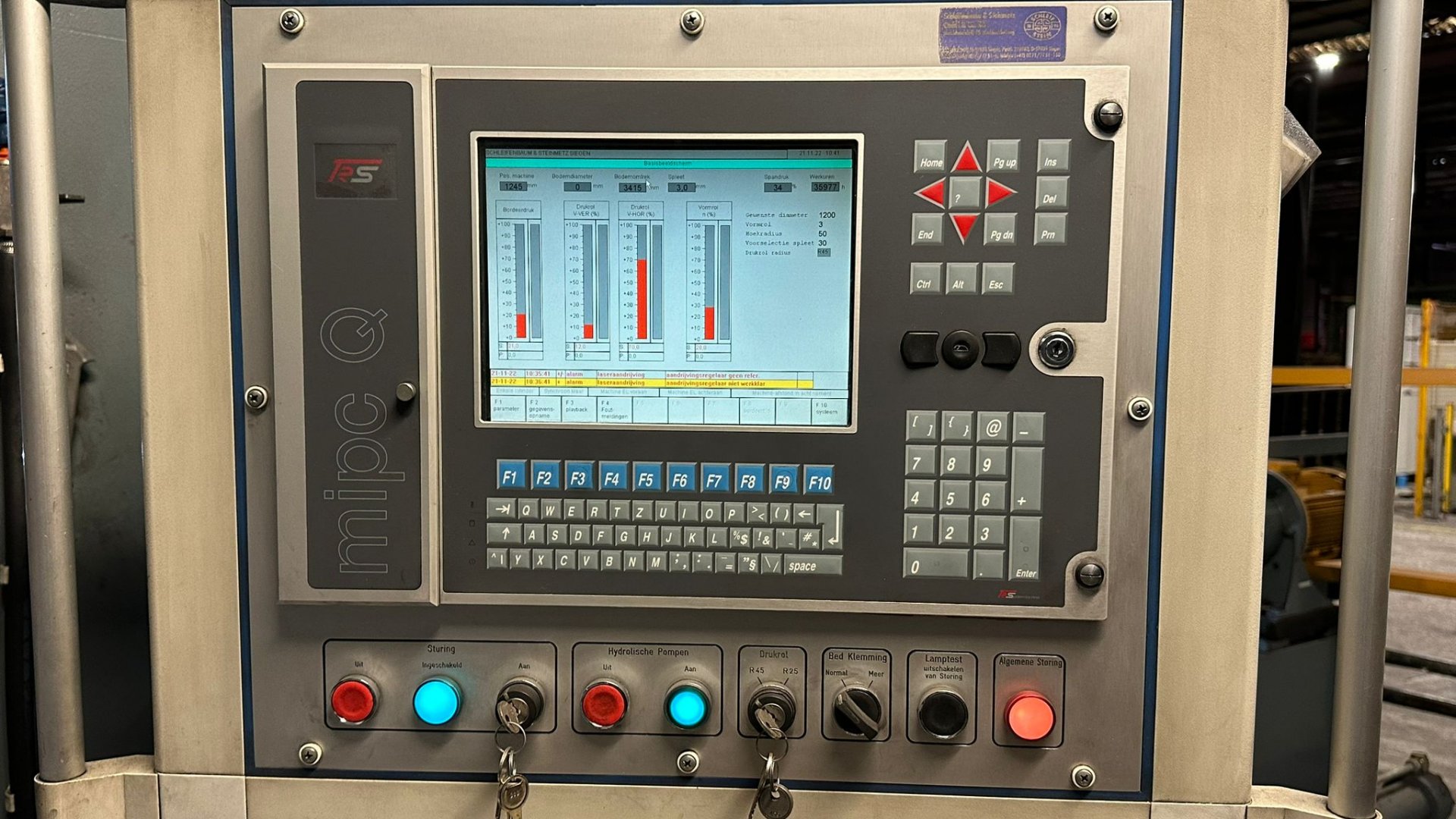

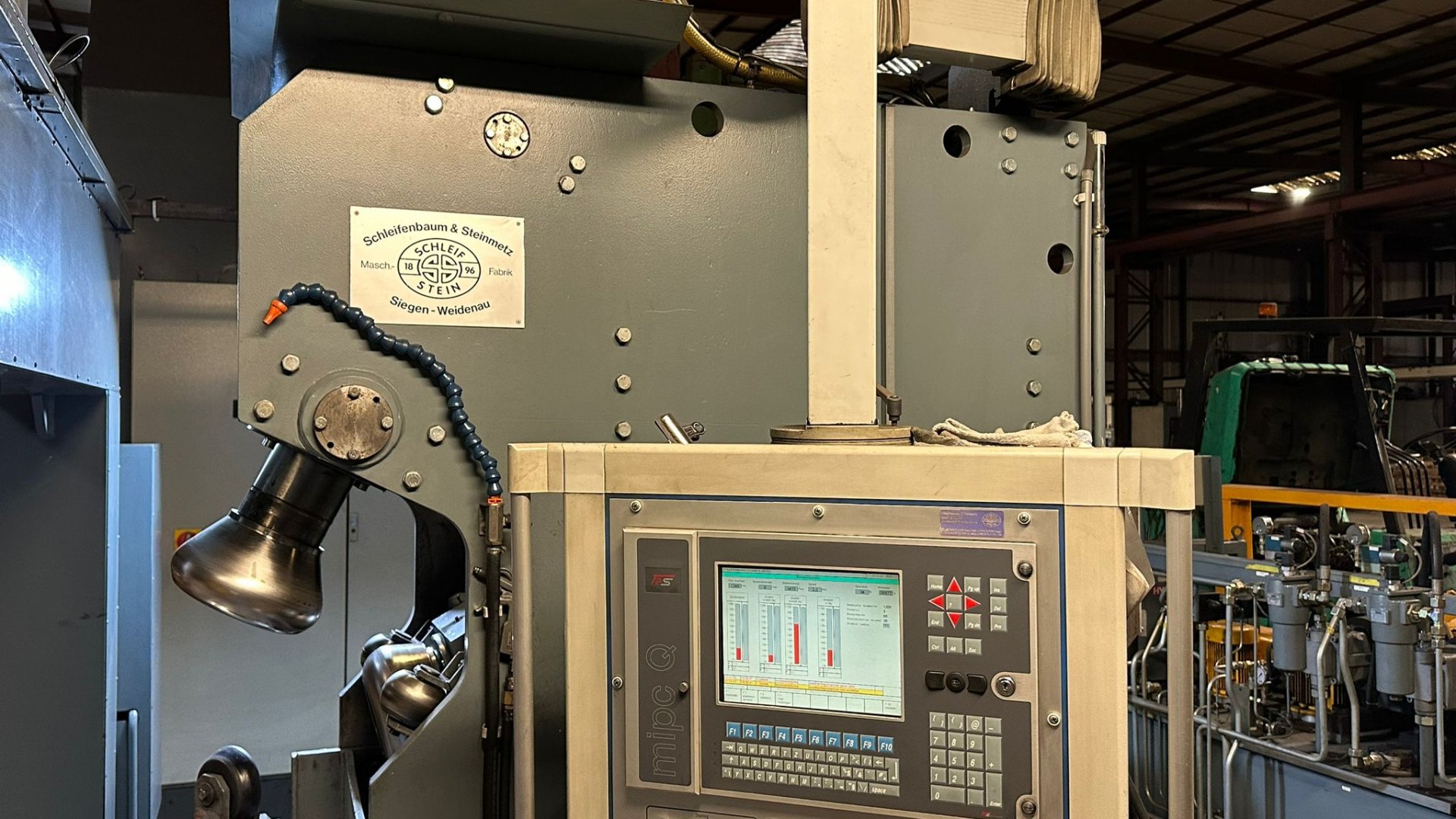

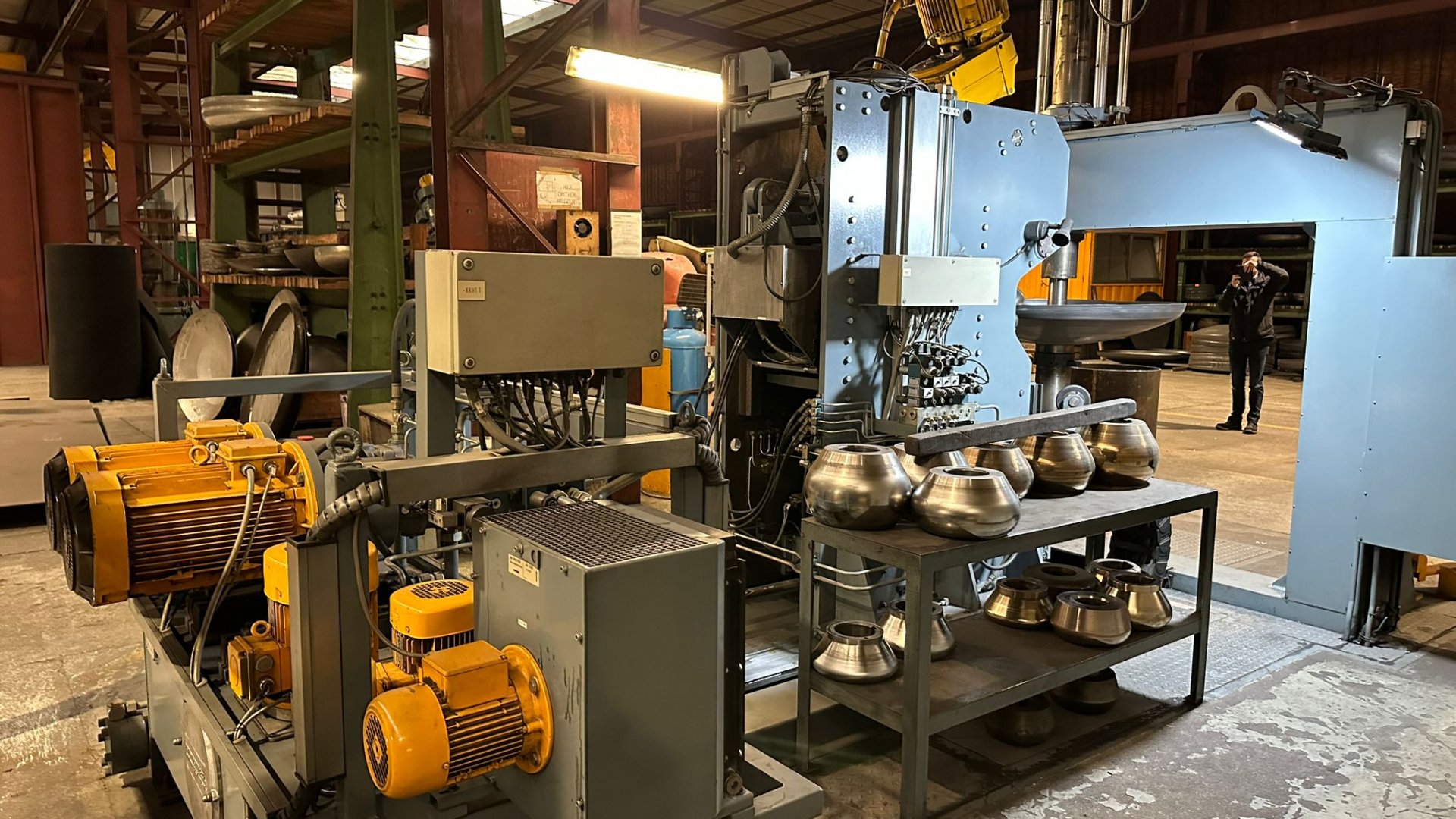

Flanging and dishing machine SMT Schleifstein - KBoL 2010-200 CNC Controll MIPC Q Playback with GAP control

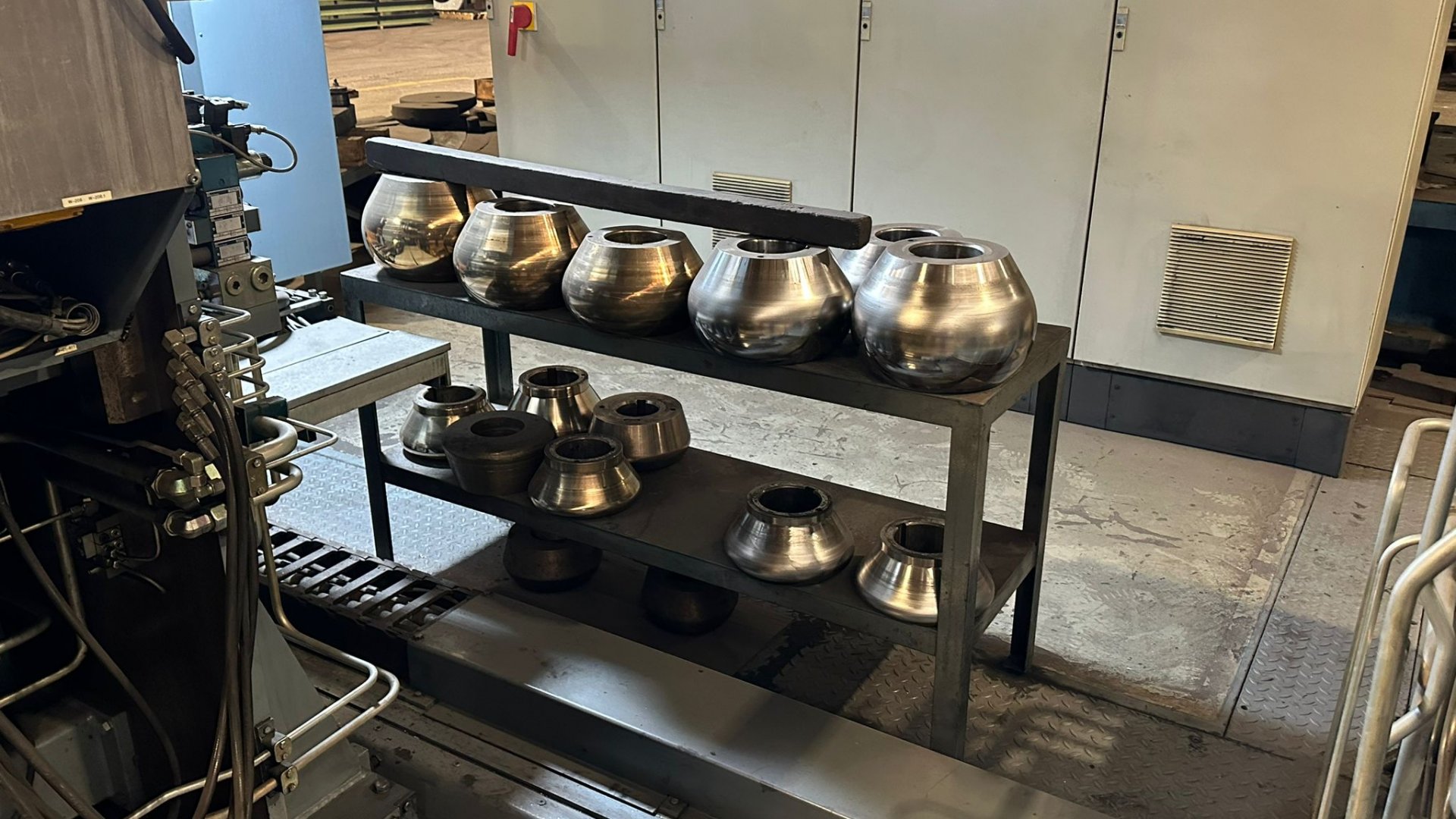

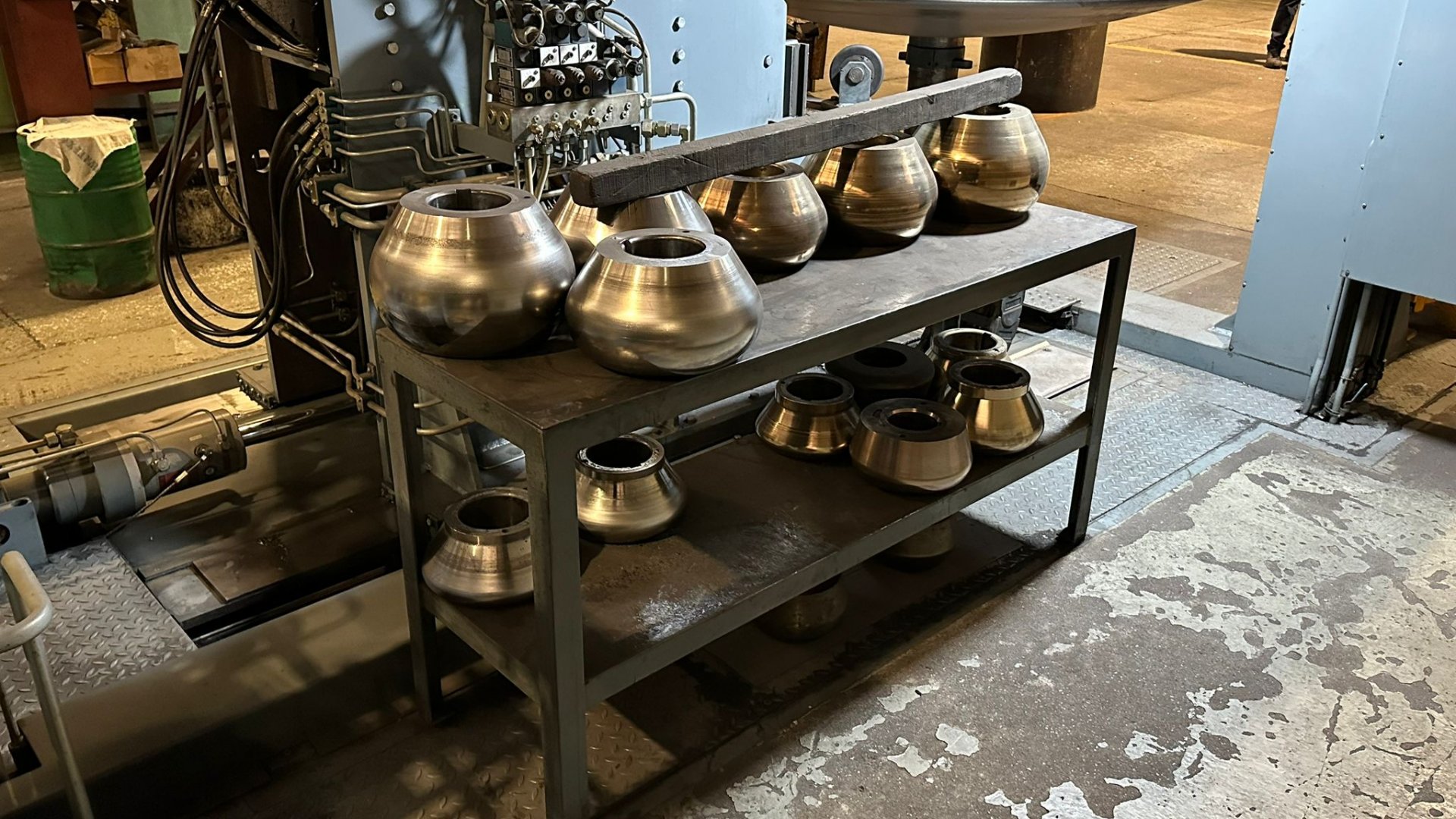

Large package TOP rolls 5 units
Large package forming & pressure rolls 5 units
Loading attachment
Unloading attachment
Under power out put 6 units
Controllable forming roll drive

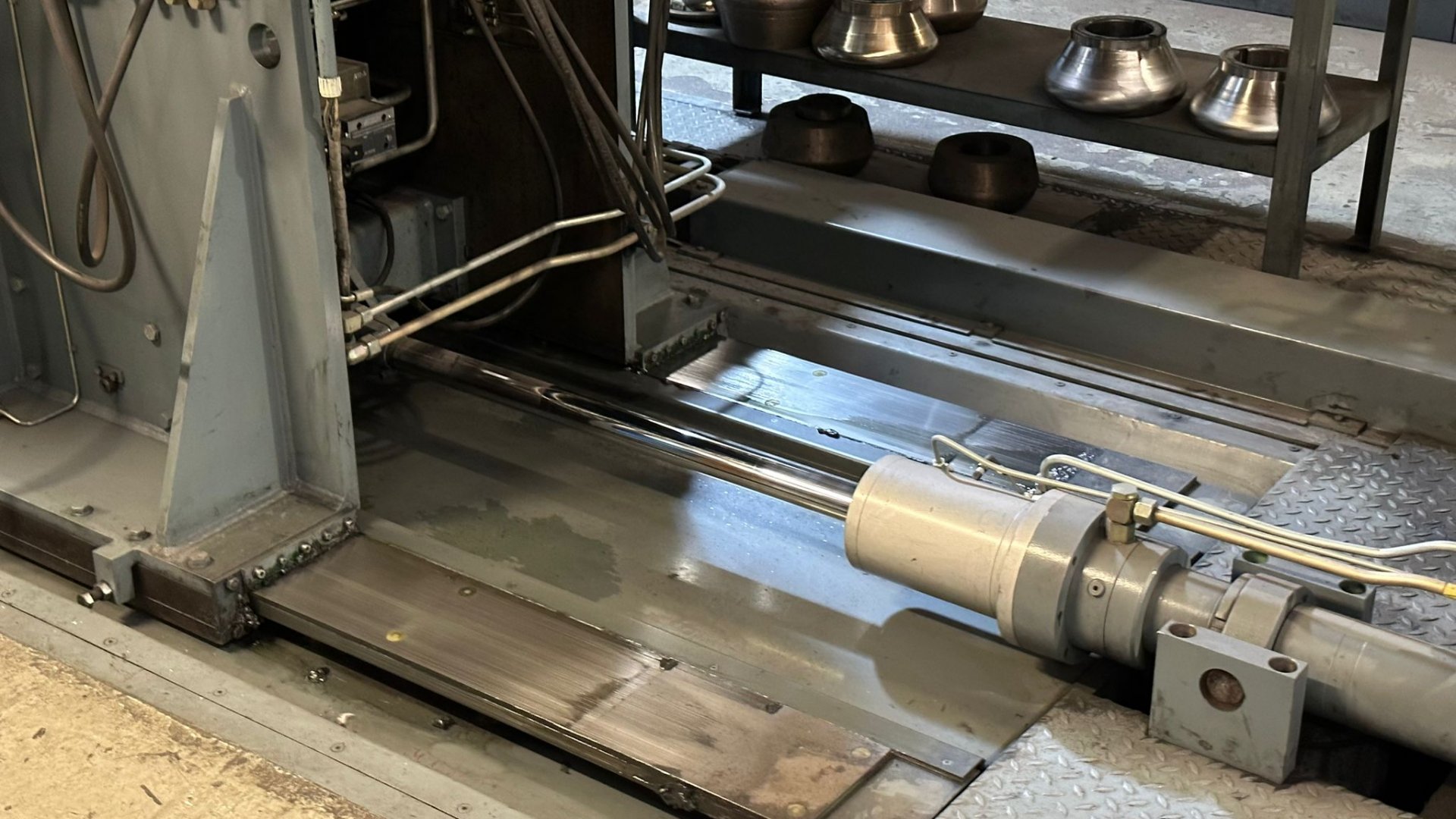

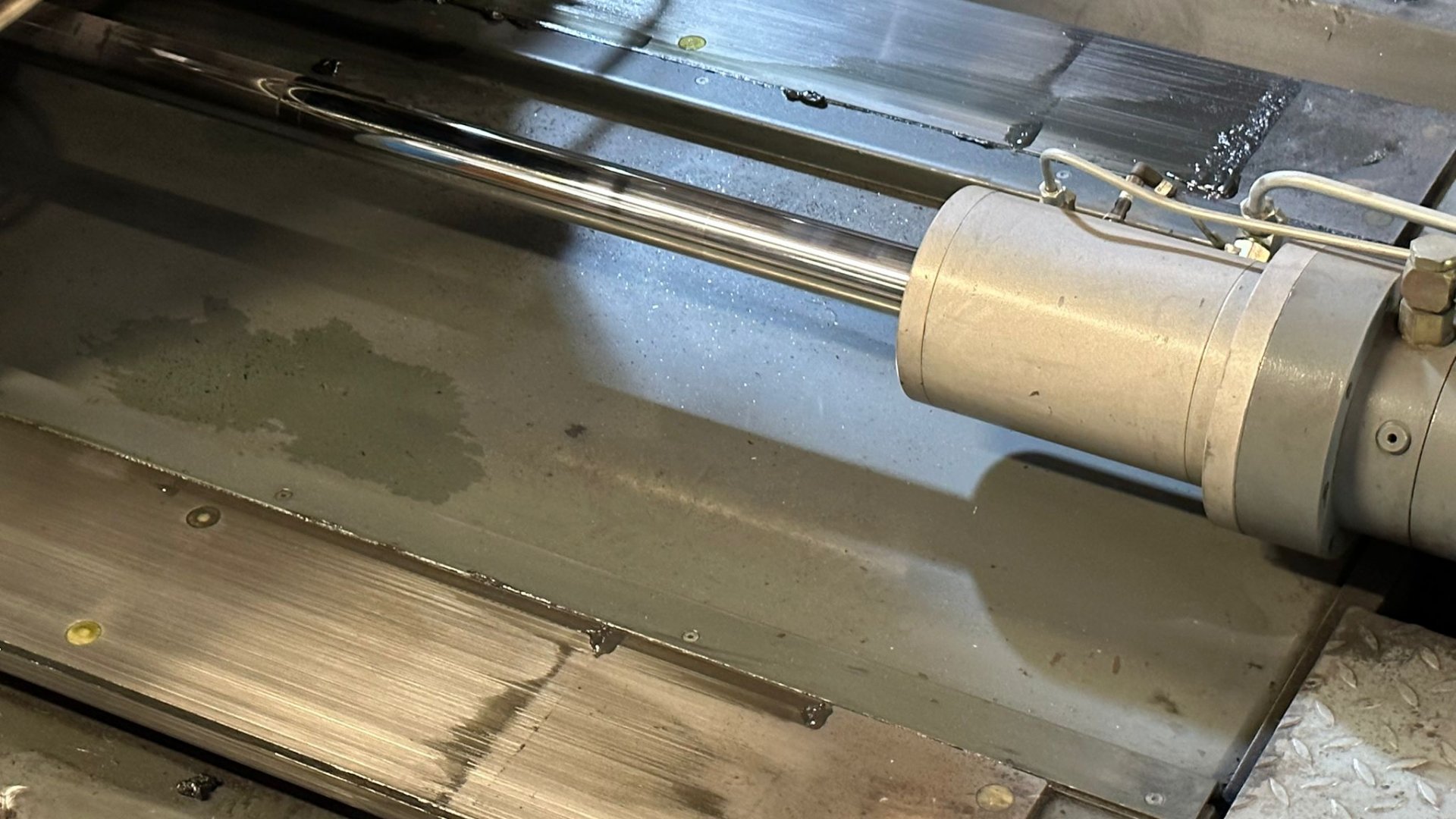

Hydraulic displacement drive
Clamping device without hole
Basket bottem
Knocker bottom
Pressure vessel bottom
Boiler bottoms
Flat floor
Plate base
diffuser bottom
Tank bottom
Tank bottom
Radar reflectors
Engine parts
Dispense air
Silo hoppers
Cooker hoods
Container parts
Hemispheres
Max. workpiece: 2200Ø
Maximum sheet thickness:10mm
Max. dishing radius: 150mm
Min. product Ø: 800
Min. plate thickness: 3mm
Min. dishing radius: 25mm
Length: 7000mm
Width: 5000mm
Height: 4000mm
Weight: 8500kg
Head manufacturing lines for precise production of tankand vessel heads

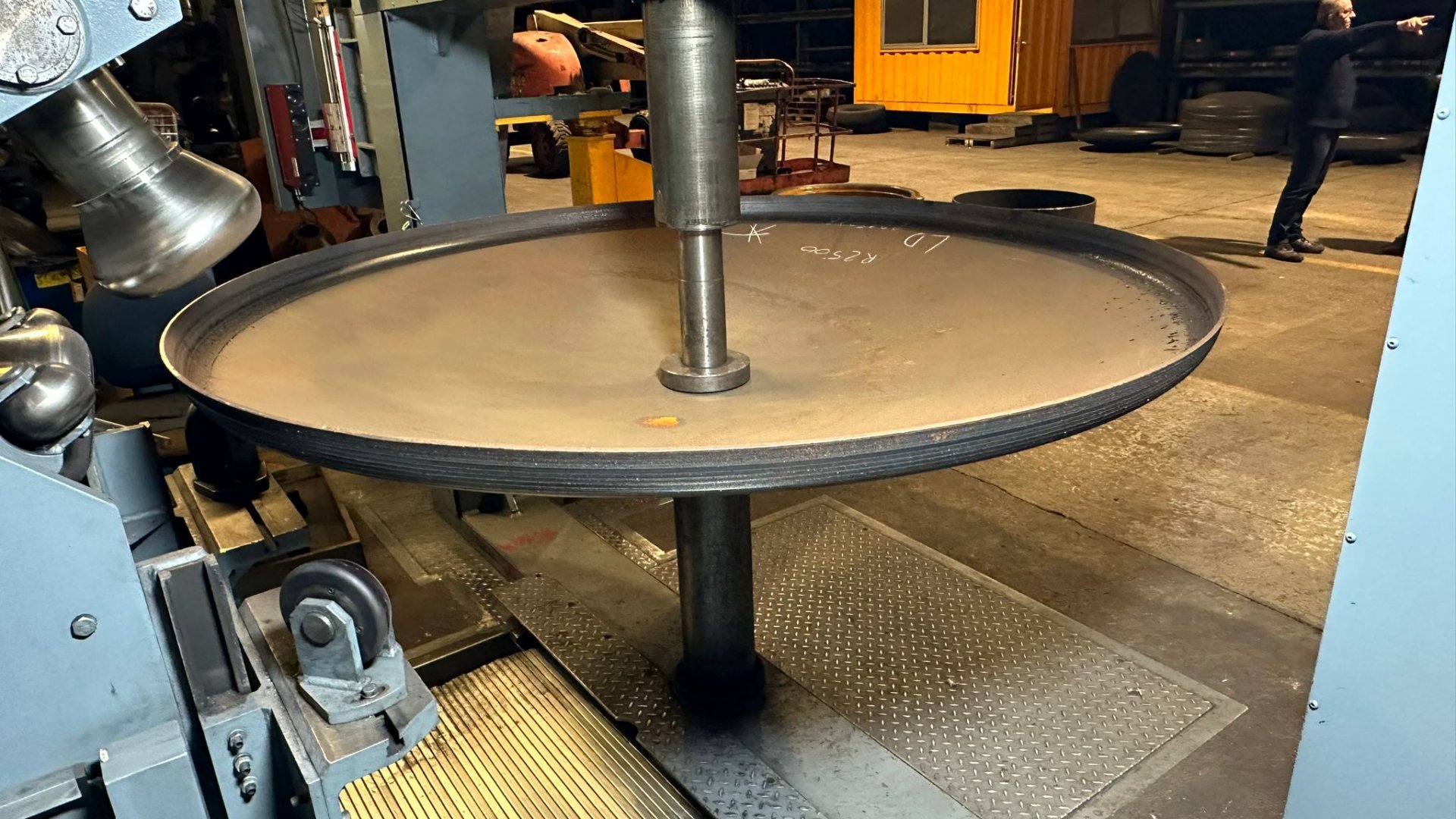

Step-by-step, partial forming (dishing) ofthe round to form a dished disk,on a hydraulic dishing unit, consisting of a press withmanipulator.Bending (flanging) the edge of the disheddisk to guarantee that there is no clear-cutto the cylindric tank,on a flanging machine.We are the pioneers for these productionprocedures and have been dealing with theimprovement of the production lines andprocesses for decades:• increase of the repetitive accuracy• decrease of production times• reduction of personnel costs• reduction of production material costs• increase of production quality• automation of production• conversion of operator know-how intocontrol know-how of the machineAs outstanding characteristics of our machines only two examples are highlighted here:PLAYBACK-Control for the dishing units.Automatic setting to a new round diamterin less than 3 minutes.Electronic Gap Control for the flangingmachine. Automatic and material-friendlyrunning along the forming roll contour witha specified distance to the pressure roll.Apart from using the latest controls you canrely on the familiar Schleifstein-quality. Wealso guarantee the well-known longevityand high availability of Schleifstein-machines by our worldwide service.Specify your application to us and we willfind an appropriate sol
