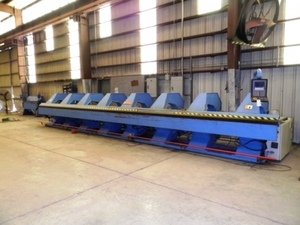

Jorns CNC Hydraulic Folding Machine, Model Maxi-Line 150-so-MB4000, (#1613)
Specifications:
#1613 Jorns CNC Hydraulic Folding Machine
Sn:
Model: Maxi-Line 150-so-MB4000
Mfg: 1995
SPECIFICATIONS:
Maximum Forming Capacity: 16 guage
Maximum Forming Length: 32’
Maximum Speed Clamping Beam UP: 1.5”/SEC
Maximum Speed Clamping Beam Down: 1.5”/SEC
Maximum Folding Speed: 58 Deg/SEC
Folding Angle Range: 0-140 Deg
Clamping Beam Stroke: 7.87”
Number of Bend Cylinders: 6
Stands: 8/M
Coupling (Piece/Type): 11/K-24L
Back Gauge Range: .5-39.37”
EQUIPPED WITH:
System 4000 CNC Control
Emergency Stop Bar Entire Length of Press
Bottom Clamping Bar w/Scale: 10, 15, 20…MM Graduations
Dual Operated Foot Pedal Control
480/3/60 Electrics
Machine Condition: Very Good
Machine Location: Shreveport LA
