160" x .118
Complete Folding Sequences Can Be Programmed
Variable Program
Online Service and Diagnosis Program.
Cost $240,000 when new
Specifications:
Capacity 160" x 11 Ga.(4060mm x 4mm)
Upper Beam Opening Height 15.75" (400mm)
CNC Folding Beam Adjustment Range 3.15" (80mm)
CNC Lower Beam Adjustment Range 3.15" (80mm)
Working Height 35.4" (900mm)
Machine Width 213.5" (5420mm)
Machine Depth 88" (2230mm)
Machine Height 100" (2530mm)
Air Pressure 67 PSI
Weight 13000 LB
Drive Power 10.3 HP (7.5 KW)
Speeds
Max Upper Beam Downstroke 1.57" (40mm)
Max Upper beam Upstroke 3.6" (92mm)
Max Folding Speed 74 deg sec
Equipped With:

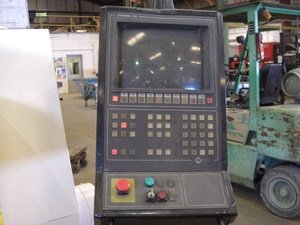

Multibend 9000 Control Updated to MultiBend 9001
14" Color Graphics Screen
6 Axis- Upper Beam Stroke Right & Left, Bending Angle, Back Stop, Height Adjustment of Bending Beam and of Lower Beam.
Soft Keys, Windows Technology....
Segmented Tooling
13' L Shape Back Gauge
