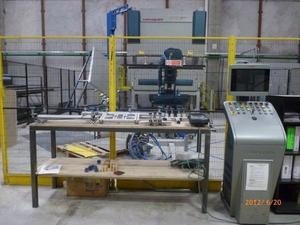

SALVAGNINI ROBOFORMER BENDING CELL
PURCHASED NEW FOR $ 400,000,
Second owner has 100 hrs of use after purchase in 2009
Specifications:
SALVAGNINI ROBOFORMER BENDING CELL
NEW 2003
CONSISTS OF:

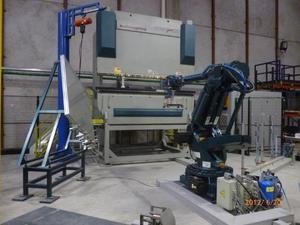

150 ton Gasparini 12' hydraulic press brake
Model: CPR-135-3000 CP 350
AMERICAN STYLE TOOLING
Bending length overall: 122"
LENGTH BETWEEN HOUSINGS: 102"
STROKE: 14"
THROAT: 18"
RAM OPEN HEIGHT: 21"
Approach (return speed max:) : 470" MIN
BENDING SPEED MAX: 47' / MIN.
RAM POSITIONING: + OR - .0004"
RAM REPEATABILITY: + OR - .0002"
20 hp motor
Equipped with 5 axis back gauge
Model : RPL-1 B

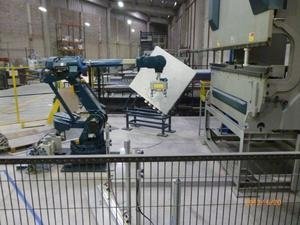

6 AXIS ROBOT, MODEL CH80

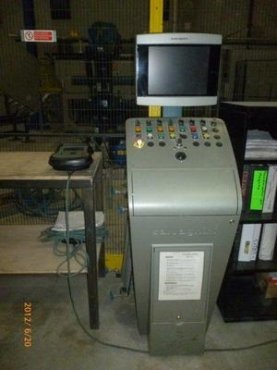

CAMSOFTWARE PROGRAMMING PACKAGE INCLUDED.
(3) MATERIAL LOADING STATIONS

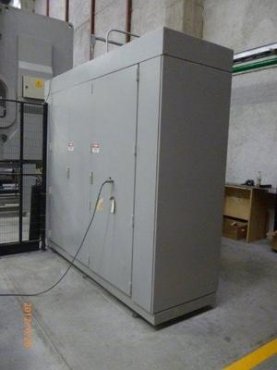

ELECTRICAL PANEL STATION

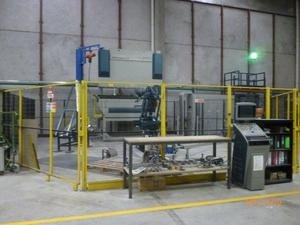

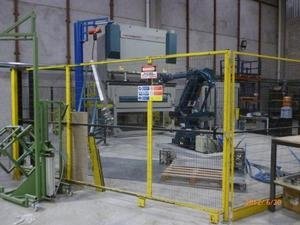

SAFETY FENCE ENCLOSURE INCLUDED.
IN SHOP, UNDER POWER FOR INSPECTION,
CUSTOMER RESPONSIBLE FOR ELECTRICAL DIS-CONNECT, MACHINE DIS-ASSEMBLE AND LOADING AND FREIGHT COSTS. OWNER WILL ASSIST IN DIS-ASSEBLE PROCESS.
