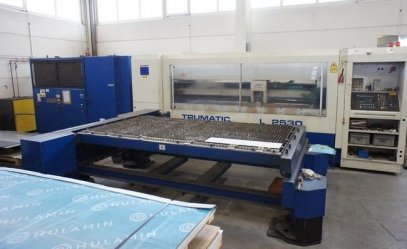

laser type: TLF 2400 turbo
numeric control: Siemens Sinumerik 840D
movement X: 2.500mm
movement Y: 1.250mm
movement Z: 115mm
x speed max.: 60m/min
y speed max.: 60m/min
z speed max.: 60m/min
speed simultaneous: 84m/min
workpiece weight max.: 500kg
plate thickness max.: 16mm
laser power max.: 2.400W
weight: 8.000kg
dimension L*B*H: 7.500*4.800*2.000mm

equipment:
- HI-LAS high-pressure-cutting
- Cutting head with 5"-Lense
- Cutting head with 7.5"-Lense
- Cutting head quick change device
- metal sheet position detection system
- Laser position diode
- Programmable cutting gas/Pressure setting
- Microweld
- PMS Plasma Monitoring System
- SprintLas
- capacitive height regulation (DIAS III)
- ContourLas
- AutoLas Plus
- Oil-Spray function
- autom. Pallet-changing
- lit working chamber
- small parts/waste conveyor
- multi-chamber suction system
- Compact dust extractor
- shut-down automation
- Safety light barriers

- ToPs 100 lite programming system
- online diagnose tool
- RJ 45 network connection
- 3,5''- Disk drive
- operators manual


Additional equipment:
+ Pallet changer
+ exchange of Resonator in 2004

-
