working hours machine: ~ 12.000 h
working hours laser: ~ 31.000 h
working range X x Y x Z: 4064 x 2032 x 170 mm

laser

laser type: DC- semiconductor generated
laser capacity CW: 4400 Watt
laser range capacity: 150 - 4400 Watt

machine

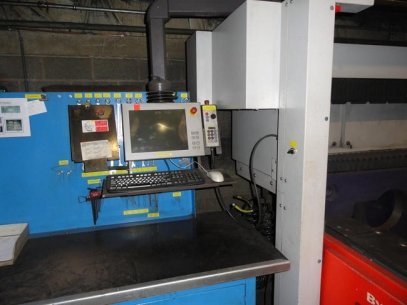

CNC-control: CNC Bystronic Byvision 15“ touchscreen
cooling unit: E. Furrer WKL 430 S1
dust extraction: Torrit DF+4-SPRK
electrian capacity total: 56 KW
space needs ca.: 16.000 x 6.700 x 2.070 mm
weight total ca.: 18.300 KG

cutable materials and thicknesses

mild steel ( EN 10027-1 S 235JR+AR or rec. Raex-Qualitaet) 25 mm
inox ( EN 10027-2 1.4301 (X5CrNi18-10 ) 20 mm
aluminum (z.B. 3.3535 AlMg3 ) 12 mm

machine description

standard options:
• cutting machine with operator safety advice by cutting, loading and unloading
• automaticly table changer
• 2 cutting heads with 5“ + 7,5“ lenses
• reflexions absorber
• cut control
• Bypos-W
• Cross-jet
• partical dust extraction system

options:
• dust extraction

revision and conditions:
• service through the manufactor/company
• revisted turbine 7.000 h before
• machine stands in production

-
