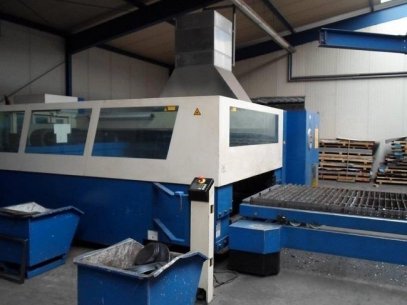

used Laser cutting machine
with tube cutting equipment Rotolas

Make Trumpf
Type Trumatic L 3050
y.o.m. 2002
Working hours machine approx. (August 2012) 32.000 h
Laser hours approx. (August 2012) 20.000 h
Working area X x Y x Z 3000 x 1500 x 100 mm
Laser type TLF 5000
Laser power 5000 W
Control Siemens Sinumerik 840 D
Electr. Equipment for rotating current 400 V / 50 Hz
Machine equipment standard
• Closed engine frame with integrated laser aggregate
• Laser aggregate: CO2-Laser, high frequency activate, chiller, logbook function
• Automatic pallet exchanger and lengthwise belt conveyor
• Drive: Gantry drive in combination with Liner-directly drive
• Laser power control
• HI-LAS ® high pressure cutting
• HI-LAS ® Plus (high speed laser cutting)
• Plasma sensor system PMS
• Fast handling with SprintLas ®
• ContourLas ® for production of small holes
• Cutting gas pressure setting programmable
• Laser cutting head with 5“-lense and 7,5“-lense
• Cutting head quick trimmer equipment, DIAS III
• Positioning laser diode
• Automatic Focus point adjustment AutoLas Plus
• Oil spray equipment for safety thick sheet conditioning
• Automatic switchoff
• Working room lighting
• Safety: light barriers, beam control complete capsuled and ventilated, control system,
multiple compartment dust exhauster and compact deduster
Advanced equipment
• Clamping claw 2 pieces
• Laser cutting head with 3,75”-lense
• Laser cutting head with 9”-lense
Tube cutting Rotolas
• Tube cutting equipment inkl. bracket type 1 (4 in- and 4 out brackets)
• Automatic collet chuck
• Beam for move equipment
• Workpiece holder D 20-200
• Workpiece holder D 140-290
Condition Good condition
Delivery Sept./Okt. 2012

-
