Technical data
Dimension of the gap: Length 2820 mm
Width 1540 mm
Height 1430 mm
Weight: 2400 kg
Performance of the electric motor 3 kW
0.25 kW electric motor of the stop
Usage parameters
Inclination angle of the cutting edge
Maximum thickness of the sheet resistance at 1 °
450MPa 2.5 mm
Maximum length of cut 2040 mm
Exhibition in the side walls 160 mm
Adjustability of the rear stop from 2.5 to 750 mm
Number of strokes with constant running 75 min-1
motorized back gauge 2.5 to 750 mm

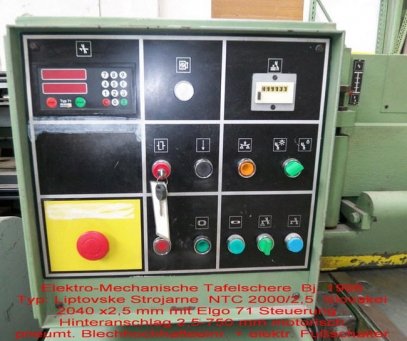

By setting front ELGO control (type 71)

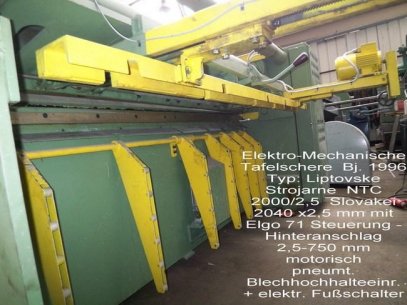

switchable pneumatic sheet support unit
electric foot switch
3 pcs Aufliegekonsole
1 piece swivel angle of attack
