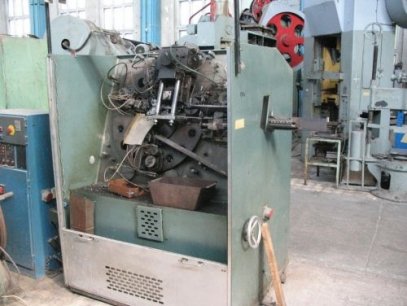

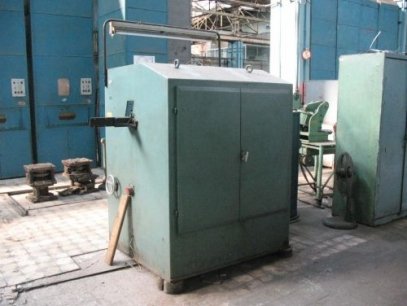

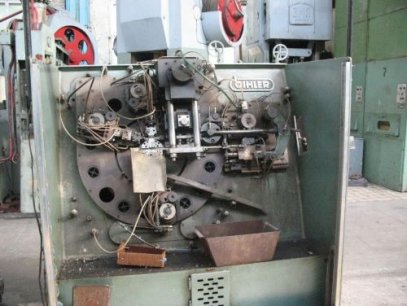

Punching and Bending Machine BIHLER RM-35 made in 1982, Switzerland.
Specifications:
Pressure: 7 ton
Plate thickness: 170-240 mm
Sheet width: 32-50 mm
Normal slide:
-Pressure: 5 ton
-Stroke: 40 mm
Narrow slide:
-Pressure: 3 ton
-Stroke: 50 mm
Stroke center ram: 45 mm
Material dimensions max. strip: 32 mm
When drawing-in cross: 100 mm
Wire: 3 mm
Stroke of press: 12 mm
Cutting length: 180 mm
Electric drive: 380 Volt
