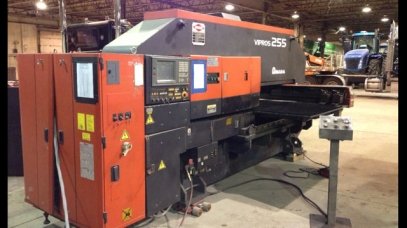

Specifications
Capacity: 22 Ton
Max. Sheet Size with Repositioning: 50" x 100"
Axis Travels: 50" x 50"
Maximum Thickness (Mild Steel): .250"
Turret Configuration: Thick
Number of Stations: 31
Max. Ram Stroke: 1.575"
Linear Positioning Speeds: 2560 IPM (X), 1968 IPM (Y)
Max. Hole Diameter: 3.5"
Hit Rate @ 1" Centers: 340 SPM
Equipped With

Fanuc 18-PC CNC Control
(3) Auto-Index Stations
New Hydraulic Pump
New Brushes

Location and Terms

ELK GROVE-ON ARRIVAL, IL

Year

Year 1998
Preliminary Specifications...

Specifications
Capacity: 22 Ton
Max. Sheet Size with Repositioning: 50" x 100"
Axis Travels: 50" x 50"
Maximum Thickness (Mild Steel): .250"
Turret Configuration: Thick
Number of Stations: 31
Max. Ram Stroke: 1.575"
Linear Positioning Speeds: 2560 IPM (X), 1968 IPM (Y)
Max. Hole Diameter: 3.5"
Hit Rate @ 1" Centers: 340 SPM
Equipped With

Fanuc 18-PC CNC Control
(3) Auto-Index Stations
New Hydraulic Pump
New Brushes

Location and Terms

FOB
ELK GROVE-ON ARRIVAL, IL

Year

Year 1998
Preliminary Specifications...
