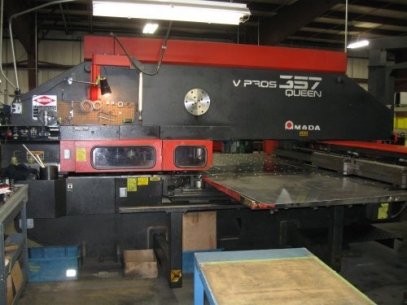

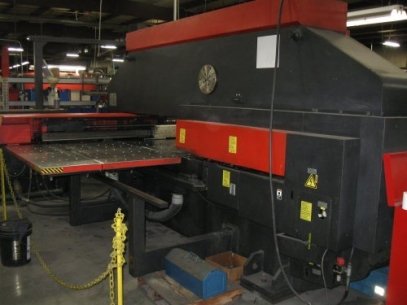

1996 Amada Vipros 357 Queen Turret Punch, 58 Stations 2 Auto Index W/ FANUC O4PC & PHNC CONTROL

Specifications:
TONNAGE RATE ............................ 33 TONS
TURRET STATIONS ......................... 58 STA.
TOOL CAPACITY ........................... 58 STD., w/(2) A/I
TOOL CHANGES -INTERNAL STATION-TO-STATION TURRET
TOOL MAG ROTATION SPEED, RPM ........ 60
ONE SET, EXTERNAL, MIN. / SEC MAX.
MAX HOLE DIAMETER ...................... 4.5"
AUTO INDEX -
NO. OF STATIONS ....................... 2
ROTATION SPEED ........................ 60 RPM
MAX. HOLE DIAMETER .................... 1.25"
SPM, ACCURACY ON 2" CENTERS ............. 275 @ .315"
RAM STROKE .. +/- .004"
STROKES PER MINUTE, CONTOURS ............ 520 @ .315"
RAM STROKE
MAX. PARTING SPEED, IPM (PERIMETER PUNCHING) 3,229
INDEXABLE FEED CLEARANCE ................... .787"
WORK PIECE -
MAX. MATERIAL THICKNESS ........... .25"
MAX. DIMENSIONS ................... 50" x 144" w/ONE REPO
MAX. WEIGHT ....................... 220 LBS.
THROAT DEPTH ........................ 50"
TABLE TRAVEL DIMENSIONS ............. 50" x 72"
LINEAR TABLE SPEED MAX., IPM ........ 3,228 DIAGONAL

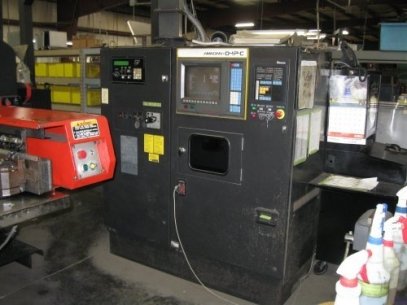

CONTROL ............................. FANUC 04PC
DIMENSIONS ................. 181.1"L-R x 148.7"F-B x 88.4"H
WEIGHT ..................... 29,700 LBS.


EQUIPPED WITH:
58 STATION TURRET WITH (2) AUTO INDEX
(36) STA. 1/2"
(12) STA. 1-1/4"
(4) STA. 2"
(2) STA. 3-1/2"
(2) STA. 4-1/2"
(2) A/I STA. 1-1/4"
