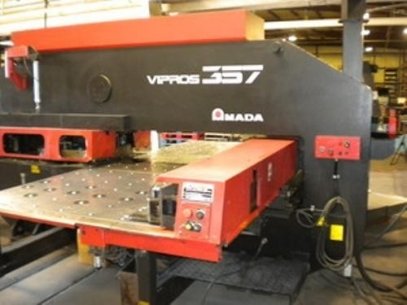

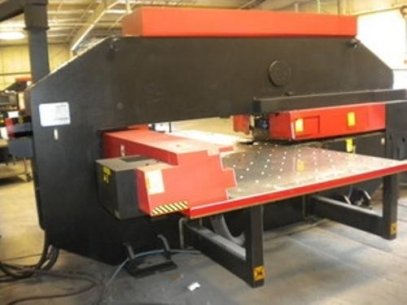

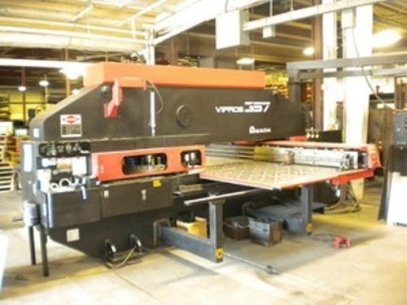

1995 Amada Vipros 357 CNC Turret Puress, 58 Station, Amada CNC Control

Specifications:
Tonnage......................................................................................... 33 tons

X axis travel................................................................................... 72"

Y axis travel................................................................................... 50"

Maximum sheet size with one repositioning................................ 50" x 144"

Maximum material thickness........................................................ 0.25"

Maximum sheet weight................................................................. 220 lbs

Approximate punching rate in Y axis on 8mm centers................. 245 spm

Approximate punching rate in X axis on 8mm centers................. 245 spm

Turret speed................................................................................. 30 rpm

Overall height............................................................................... 91"

Overall width................................................................................ 184"

Overall depth................................................................................ 149"

Approximate weight...................................................................... 30,000 lbs





EQUIPPED WITH:

58 Station Turret

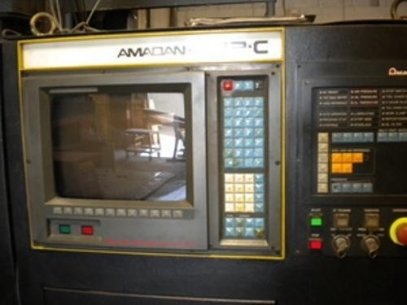

Amada CNC control
