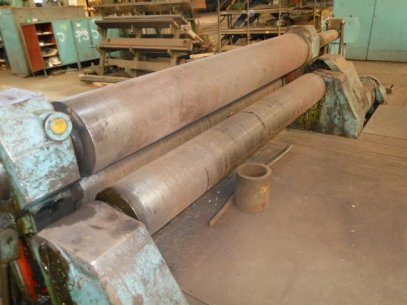

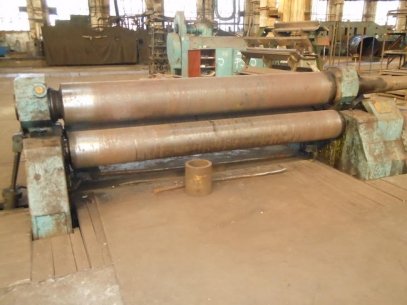

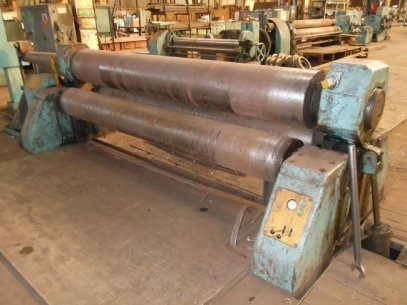

Roll bending machine XZM 3000/25 Strojarne Piesok XZM 3000/ 25
Specifications:
Working width mm 3000
Number of roll ... 3
The smallest inner diameter of 500 mm pipes
Upper cylinder diameter 410 mm
Lower cylinder diameter 350 mm
Speed: rolling m min-1 7.3
adjustment of the upper cylinder mm min-1 90
Electric power:
for the drive cylinder 30 kW
adjustment for the upper cylinder 21 kW
hydraulic unit for 0.8 kW
Machine dimensions: length 6000 mm
width 2035 mm
height 2250 mm
working height 800 mm
Machine weight kg 22000
