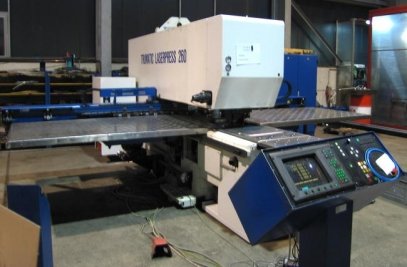

numeric control: BOSCH Trumagraph CC 300 T21
X movement: 2.700mm
Y movement: 1.300mm
X speed max.: 90m/min
Y speed max.: 60m/min
simultaneous speed max.: 108m/min
number of strokes max.: 500 1/min
workpiece weight max.: 150kg
plate thickness max.: 6,4mm
tools automatic changing: 10 p.
punch power max.: 250kN
punch diameter max.: 76mm
weight: 20.000kg
dimensions L*B*H: 7.400*8.300*2.600mm

equipment:
- 10 cartridges
- Full rotation of all tools
- Repositioning device
- Tool length compensation
- small part chute 500 x 500 mm
- good parts container
- punching slug suction system
- metal forming possible
- Programmable spray tool lubrication with 2 tanks
- Programmable stripper
- Air-cushioned machine installation
- Security light barriers
- owners manual

Additional equipment:
+ 7 retractable sheet clamps
+ Function Multitool
+ 2 pneumatic back setting cylinders

-
