STANKO, 7414, MISCELLANEOUS, SLOTTERS
  • Condition:Used
  • Category:SLOTTERS
  • Type:MISCELLANEOUS
  • Manufacturer:STANKO
  • Model:7414
  • YOM:1990
  • Location:Lithuania, Vilnius
  • Price:On request
  • Stock No:-
  • Control:-
  • ID:AS18935
Description:

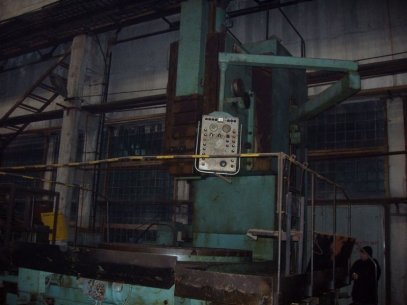

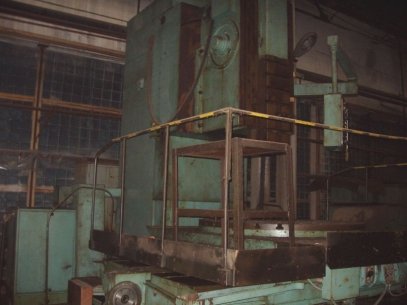

Gear slotting machine STANKO 7414 made in 1990, in Russia.
Specifications:

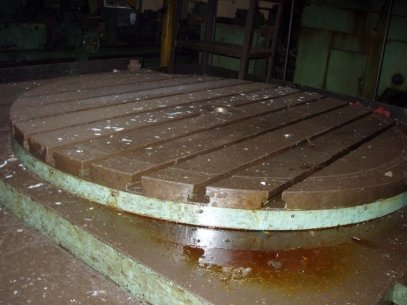

Table diameter: 1800 mm
Max height of work-piece:
-External: 1500 mm
-Internal: 1070 mm
Spindle stroke:
-Min: 400 mm
-Max: 1600 mm
Max course of the table:
-Longitudinal (along the bed): 1800 mm
-Cross: 1250 mm
Distance between:
-External surface of tool fixing and column: 1400 mm
-Table and bottom edge the slotting head guideways: 800-1600 mm
Max slotting head swivel angle: +/- 10 deg
Slide speeds range: 2-40 m/min
Max table swivel angle: 360 deg
Max cutting force: 6500 kg
Max tool section: 63x40 mm
Speed range of the setting travels of the able: 10-1600 mm/min
Max work-piece weight: 12 ton
Main motor power: 45 kW
Dimensions:
7000x5100x6500 mm
Weight:
35,5 ton
Dealer name:
EMTC Machinery Lithuania, Vilnius
