Machine reference nr.: 326

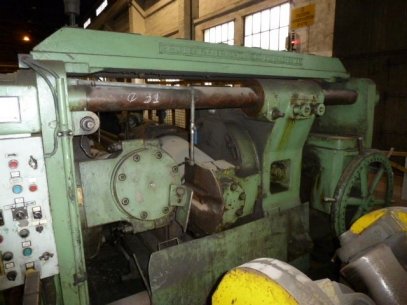

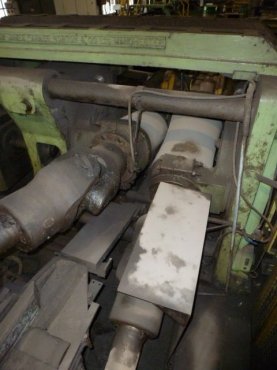

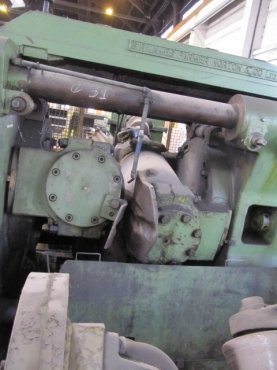

TWO ROLLS STRAIGHTENING MACHINE FARMER NORTON

Manufacturer FARMER NORTON
Model 4B
Working range Mild carbon steel: Ø 12,7 - 127 mm.
High carbon steel: Ø 12,7 - 95 mm.
70 Kg./mm2 steel: Ø 12,7 - 89 mm.
Bars length 8 mt.
Rollers adjustment 12 – 20°
Feeding speed Max.16 mt./min.
Motor power 75 kW – 720 RPM
Tension 380V. 50 Hz.

Loading table
Entry channel
Feeding pinch-roll
Two rolls straightening machine
Exit channel
Exit roller conveyor
Collecting cradles
Electric cabinet
Hydraulic equipment
Spare parts
