TECHNICAL DATAS:

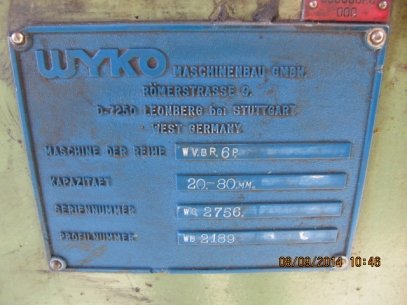

Manufacturer WYKO MASCHINENBAU GMBH.
Year of manufacture 1975
Model WV.BR.6P
Working range Ø 20 – 80 mm.
Speed 30 mt./min. approx.
Bar’s length 4 mt. with the existing benches
Roll’s diameter Ø 450 x 560 mm.

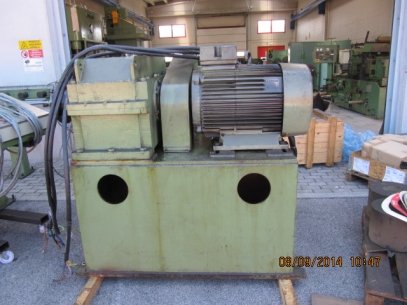

Main motor 2 x 35/ 40/ 60 kW a.c.
Tension 400 V. 50 Hz.
Specifications:
COMPOSITION OF THE LINE
Chains loading bench
Inlet channel

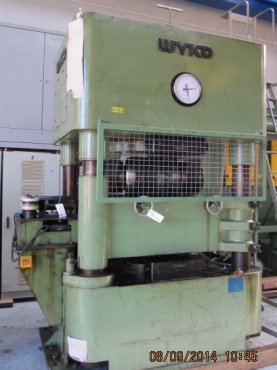

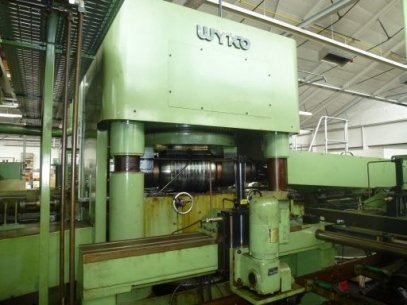

Two rolls straightening machine
Exit pinch-roll
Exit channel
Chains discharging bench
Electric equipment

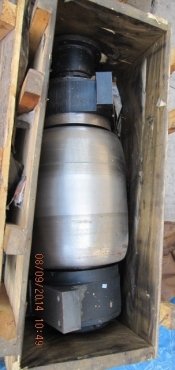

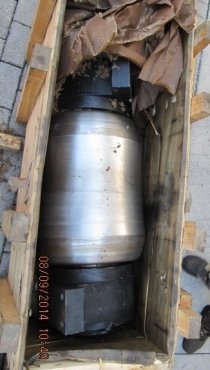

N°1 pair of spare rollers complete with chokes and bearings

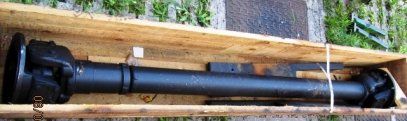

N°1 Cardan shaft
