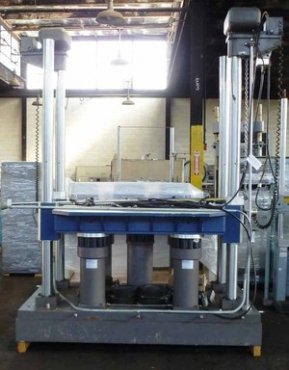

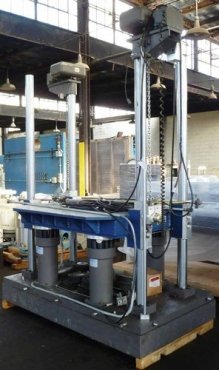

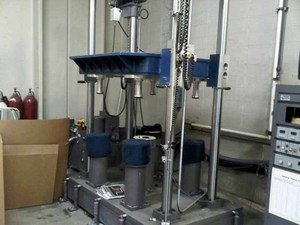

Lansmont Model 152 Shock Machine Test System

Lansmont Model 152 Shock Machine Test System

Serial No. ST-152-0033

Max Specimen Weight 2500 lbs
Max Package Size Length 60"
Max. Package Size Width 60"
Max Package Size Height No Restrictions
Max. Acceleration 600g (Bare Table)
Pulse Duration, Min. 2 msec
Pulse Duration, Max. 80 msec
Max Velocity Changes 25 ft/sec (7.62 m/sec)
Approximate Overall Dimension (WxDxH) 101" x 61" x 125"
Weight 21,000 lbs
Voltage Requirements 230V, 60Hz, 3Ph
Air Requirements 90 PSI

Equipped With:

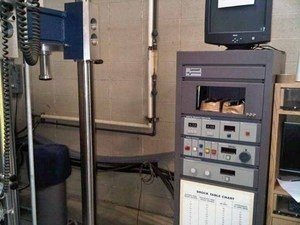

Large Payload Capacity Table. Four Precision Guide Rods. Wide Range of Programmable Shock Pulses. Hydro-Pnuematic Brakes and Safety Mat. Lansmont Shock Test Controls. Digital Velocity Indicator. Acceleration Sensitivity, Integrate Time, Velocity Change. Shock Control. Hoist, Arm, Drop, Brake Pressure. Pressure Control. Programmer Pressure. Manual.
