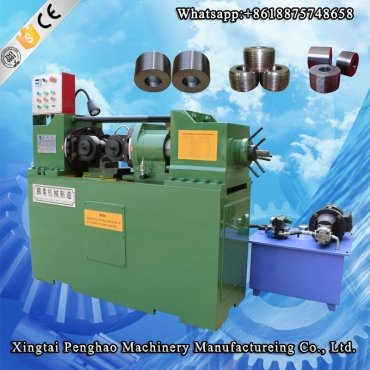

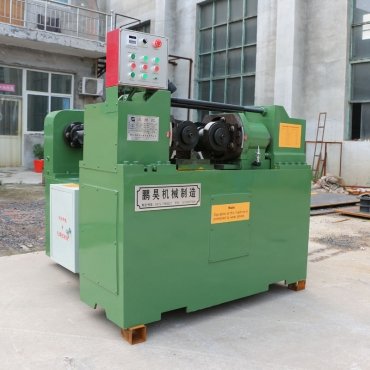

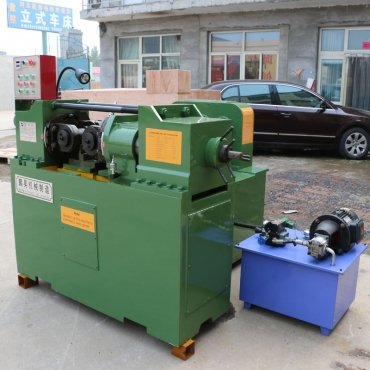

The Z28-185 bar threading machine is mainly used for processing precision standard parts of thread and high strength,including regular thread,trapezoid thread and modulax thread.The objective material to be processed inchcde carbon steel ,alloy steel and nonferrous metal with elongation over 10% and tensile srength less than 100kgf/mm²
Specifications:
Thread rolling machine
Specification of Z28-185
Pressure of roller max 200KN
Dip Angle of Min Shaft ±15°
Working Dia 6-65mm
Rolling power 11kw
Thread Distance max 2-8mm
Hydraulic Power 2.2kw
Roller Dia max 210mm
Cooling Power 0.12kw
BD of Roller 75mm
Weight 2500kg
Roller Width max 150mm
Packing Size 2200*1600*1500mm
Center Distance of Main Shaft 160-280mm
