Merk REMS Unimat
Type UNIMAT 75
Jaar 90 er

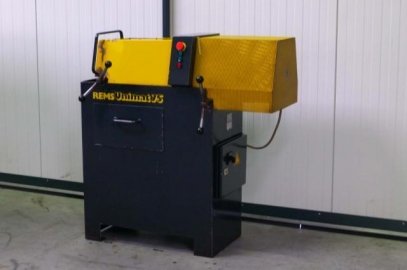

REMS threading machine
Bolt = 6 - 72 mm
diam. 30 = Unlimted length
diam. 72 = 200 length
- Capacity: - Bolt threads : 6 – 72 mm - Pipe threads : 16 – 63 mm - Thread length %26#8804; Ø : 30 = Unlimited - Thread length %26#8804; Ø : 72 = 200 mm - Chamfering: - Range : 7 – 62 mm - Chamfered Ø %26#8805; : 7 mm - Maximum chamfer : 7 mm - Chamfer angle : 45%26#730; - Peeling: - Range : 7 – 62 mm - Peeled Ø %26#8805; : 7 mm - 2 spindle speeds : 70 + 35 Rpm - Power 400 V / 2000 W / 50 HZ - Universal automatic die head - Tooling threading sets ca. 20 sets M6 / M8 / M10 / M11 – 16 / M12 / M18 – 22 / M24 – 27 / M30 – 33 M36 – 39 / M42 – 45 / M48 – 52 / R1/4 – 3/8 / R 1/2 – 3/4 / WW 1%22 WW1/6%22 / WW 1 1/2%22 / WW 2%22 / 3/4BSw
