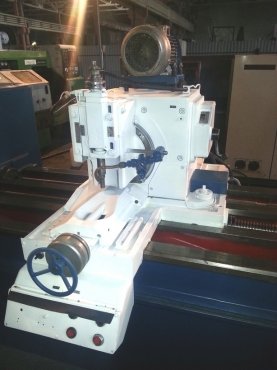

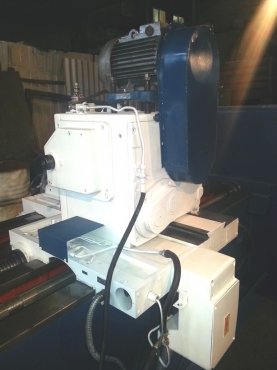

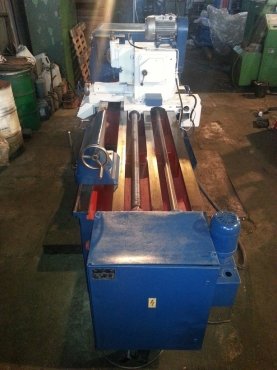

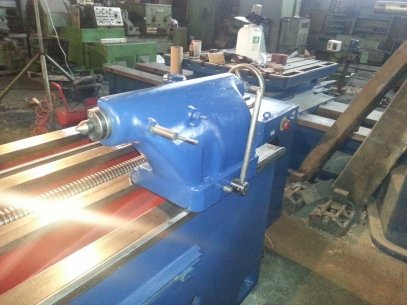

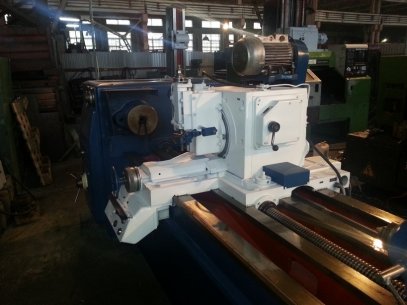

Thread milling and spline machine model ZFWVG 250x2000
Specifications:
Max. workpiece diameter:
500 mm
Threading length:
2000 mm
Max. module:
8/12
Min. module:
0,3
Centre height:
260 mm
Spindle bore:
102 mm
Hob turning speeds:
45 - 560 U/min
Workpiece dia. over bed:
500 mm
Workpiece dia. over saddle:
250 mm
Total power requirement:
9 kW
Weight of the machine ca:
4,2 t
