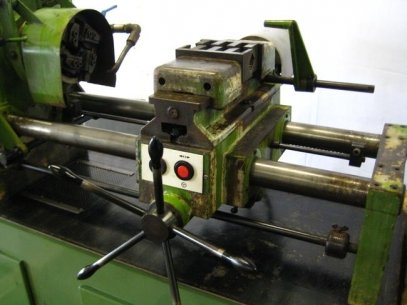

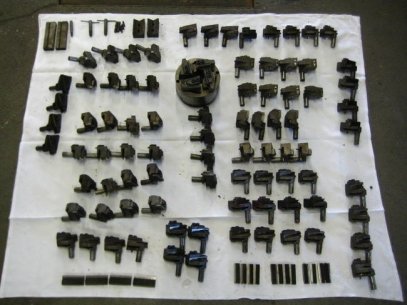

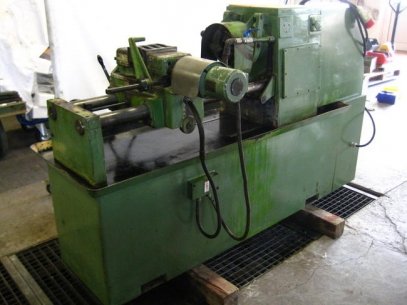

External threading machine with 23 Strehlersätzen Z52 Manufacturer: WMW, Year: 1971 Type: GA 52/2 Specifications: Cutting range metric M 6 - M 52 Metric Fine M 13x1 - M 63x3 With Worth 3/8 - 2 Withworth G 1/8 - G 3 trapezoid Tr 10 - Tr 36 max. Thread length 52 mm Aussendrm. 500 mm to 60 mm outer diameter L = 130 mm to 90 mm outer diameter L = 40 mm hollow spindle diameter 54 mm Elektr.Schraubstock clamping range 6 - 90 mm 6 Spindle speeds 25 - 140 U / min Re. - Li Running Power consumption 3.5 kW Weight approx 710 kg Overall Dimensions 2020 x 1050 x 1160 mm cutting head Z52 coolant system 2 x Extra jaws for vise 23 Strehlersätze with and without threading chasers 2 x Strehl replacement Z52/5B M42 - M52, 1 5/8 " - 2 ", Tr.40x5 <2 2 x spare Strehl Z52/3B M16 - M24, 3/4" - 1 1/8 ", <2 30 3 x replacement Strehl Z52/2B M6 - M14, 3/8" - 5/8 ", <3 2 x spare Strehl Z52/4B M27 - M39, 1 1/4" - 1 1/2 ", <2 15 1 x replacement Z52/23B Strehl R 1 3/4" - 2 1 R / 4 ", <0 48 1 x replacement Strehl Z52/23B M55x2 - M65x3, R 1 3/4" - 2 1/4 ", PG 42-48 <0 48 3 x replacement Z52/22B Strehl R 1 1/4 "- R 1 3/4", <1 1 x spare Strehl Z52/22B M39x1, 5 - M52x3, R 1 1/4 "- 1 3/4", PG 36 <1 1 x spare Strehl Z52/21B M24x1, 5 - M36x2 R, 3/4 "- 1 1/8", PG 13.5 to 29 <1 15 1 x replacement Z52/21B Strehl R 3/4 "- 1 1/8", <1 15 2 x Strehl replacement Z52/20B M12x1, 25 - M24x2, R 1/8 "- 5/8", 7 to 13.5 PG [...Technical data truncated]

-
