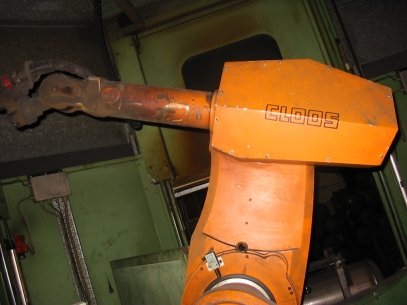

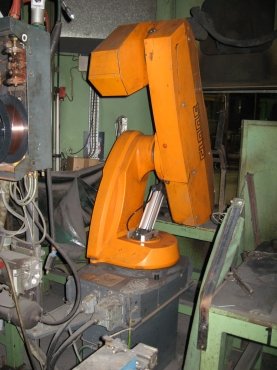

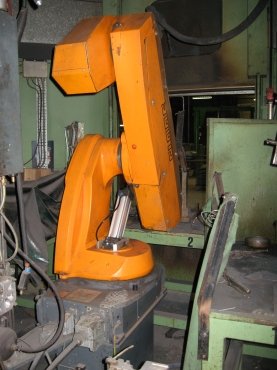

CLOOS transistorized MIG/MAG pulsed arc welding machine type GLC 403 PA – TS
Manumag 2 with wire drive unit type CK 88 A.

Technical Data;
Input:
 Three-phase normal input voltage - 230/400 V
 Nominal frequency - 50 Hz (special voltage and 69 Hz frequency are
possible)
 Input peak current – 51/30 A
 Input continuous current – 35/20 A
 Slow blow fuse – 50/25 A
 Power supply cable – 4x10/6mm²
 Input constant power – 13.8 kVA
 Power factor cos Phi – 0.91
Output:
 Open circuit voltage – 58 V
 Welding range – 40 A/15 V → 400 A/34 V
 Duty cycle 100% - 310 A/30 V
 Duty cycle 60% (10 min.) – 400 A/34 V
 Type of protection – IP 23
 Type of cooling – F
 Insulation class – F
 Dimensions of power source LxWxH – 1190x530x930 mm
 Weight power source – 205 kgs
 Dimensions wire drive unit LxWxH – 610x380x355 mm
 Water cooling of torch – 2.0 l/min at 3.0 bar (30m Ws)
Continuous noise level at a height of 1.6 metres and a distance of 1 meter
from machine:

 Machine noise when switched on – 60 dB (A)
 Machine noise at full capacity – 82 dB (A)
 Wire feed infinitely adjustable – 0 … 24 m/min
 Permission – EN 60 974-1
