Electron beam welding is used for joining metallic materials with normal welding seam depths. The very thin weld seam its narrow heat affected zones drastically minimises the energy transferred and the distortion to the component as whole. Components that have a tendency to distort and subassemblies that require a high level of mechanical pre-processing can be joined using this method without being damaged.
Customers worldwide, from the automotive, aerospace, and turbomachinery industries to branches of mechanical & electrical engineering and research & development profit from our reliable, innovative technologies, know-how and years of experience as electron beam specialists.
Specifications:

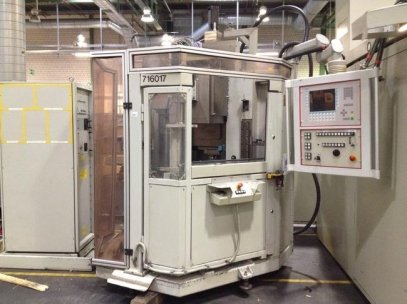

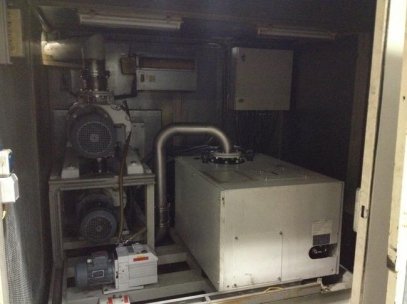

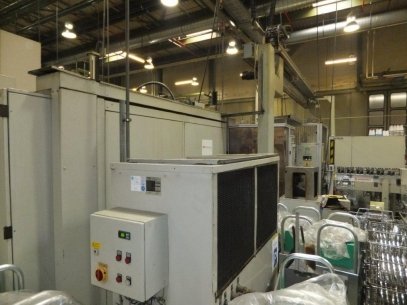

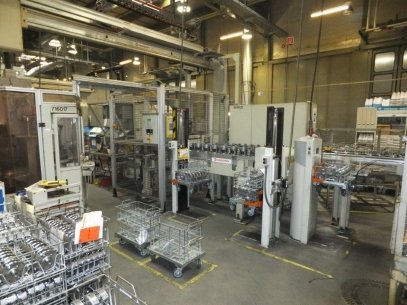

STEIGERWALD EBOMAT T60 / 3-GN50 Electron beam welding machine for planetary gears

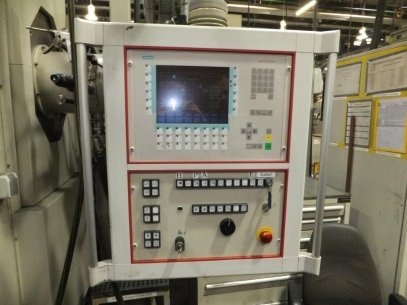

Siemens Simatic CNC Control

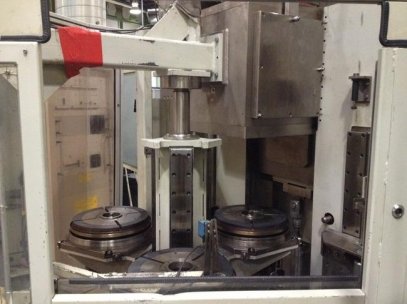

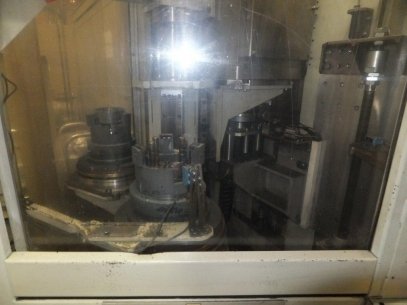

3 Stations
diameter 390 mm
height 500 mm
volumen 60l
cycle time 60s
Fug beam 5500kw 70kv
weld diameter 1 151,6 mm
weld diameter 2 146,9 mm
High voltage:
Output voltage of 0-70 kV adjustable
0-72mA output current (limited to 75 mA)
Ripple <0.2% ss type. 0.1% ss at 72 mA and 70 kV
Series resistance 15000 ohms (compensated)
Cathode resistance 200 Ohm
Deviation (chip drying control) at 100% load change <1 x 10e-4 from face value
Wehnelt
isolated for 70 kv DC, associated with a negative outcome of the high-voltage device.
Output voltage 0 to -2500 V
Output current bipolar max. + - 15mA dynamic, 50 mA short circuit Antiegs- bwz fall time max 10 sec for 1.5kV voltage swing
Regulation, so that the beam current flows constant
Beam current control
Deviation at + - 10% net change <+ - 1 x 10 e-4 from face value
heater voltage
isolated for 70 kv DV with negative output of the high voltage cathode resistor connected device via 200 ohm
Output voltage 12 V max
Output current 0-40 A
Current measurement on the ground side
Clock accuracy flow measurement and control <1 + -% of full scale ripple <0.5% for resistive rated load and 40 A
Power supply 400v
Cooling water closed system 250l / h 4-5 bar
Compressed air 250l / h 5-6Bar
